| Brand Name : | JAGUAR AUTOMATION |
| Model Number : | N300 |
| Certification : | CE |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 50 sets per month |
| Delivery Time : | 20 work days |
| Price : | Negotiation |

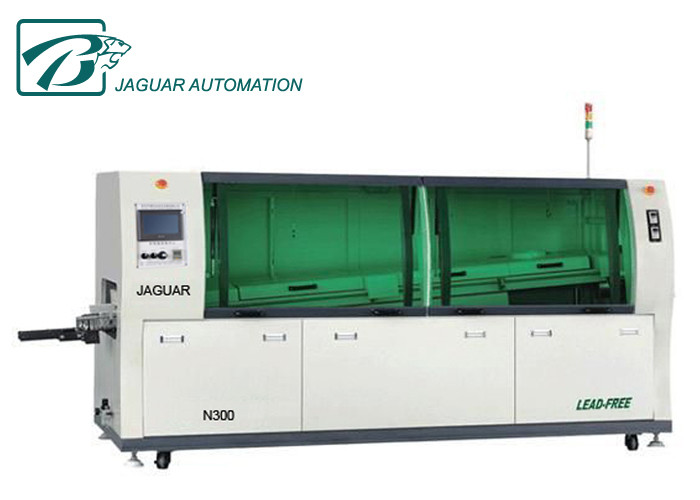

Touch Screen N300,Automatic Wave Soldering Computer PLC Control SMT Soldering Machine,Reflow Soldering Machine
Cargo description:
1.01 The whole machine is controlled by Siemens PLC + Lenovo
computer + temperature control module, which is stable and reliable
1.02 Powerful control software, running on Windows XP system, can
switch between Chinese and English at any time
1.03 Spray movement is controlled by stepper motor
1.04 Japanese lacquer nozzle, adjustable spray area and depth
1.05 Flux forced supply system
1.06 Complete flux recovery and exhaust filtration system,
environmentally friendly
1.07 The total length of two sections of hot air preheating zone is
1300mm, PID temperature control method
1.08 Modular design of heater, plug-in type, easy maintenance
1.09 Molded arc tooth impeller, patented nozzle design, realize
ultra-low oxidation, adjustable nozzle
1.10 Tin furnace liner uses titanium alloy material
1.11 Sibo economic operation mode, less oxidation, energy saving
1.12 All titanium alloy chain claw, resistant to corrosion and high
temperature, never deformed
1.13 Adjustable shock wave crest and intensive flat wave width to
save energy and reduce oxidation
1.14 Dual cooling zone design, using strong cooling method of upper
and lower fans
1.15 Equipped with new titanium alloy double hooks, aluminum alloy
rail anti-deformation structure design
1.16 Manually adjust the width of the substrate; the conveying
angle can be adjusted
1.17 The transportation speed is controlled by frequency converter,
stepless speed regulation
Specification:
| Model No. | JAGUAR N300 |
| Number of heating zones | 3 |
| Length of heating zones | 1450mm |
| Total/running power | 18KW/5-78KW |
| Air supply | 0.5MPa |
| Preheating method | Hot air or Infrared, hot air, combination |
| Preheating power | 220V 6KW |
| Control method | PC +PLC/Touch screen/Keyboard |
| Range of temp. control | Room temperature---300ºC |
| Preheating time | About 10-15mins for setting 150ºC |
| Solder type | Lead-free / Sn-Pb |
| Solder pot capacity | 280KG |
| Solder pot temperature | 300ºC |
| Solder pot material | Cast iron enamel/Titanium alloy/316 stainless steel |
| Heating emitter power | 380V 5KW |
| Solder temp. control method | PID+SSR |
| Wave crest drive power | 1KW 220V |
| Wave crest height Control | Frequency converter |
| Warm-up time of solder | About 180mins for setting 250ºC |
| PCB width | 50-300mm |
| Component clearance | Top 120mm(option 160mm) Bottom 15mm |
| Convey speed | 0-1800mm/min |
| Convey height | 750+/-20mm |
| Convey direction | L→R (R→L optional) |
| Convey angle | 4-7 º |
| Convey width adjustment | Manual |
| UPS | Option |
| Nitrogen structure | Option |
| Flux pressure/capacity | 3-5 bar/3.5L |
| Weight | 1200KG |
| Power Requirement | 3P5W,380/220V 50Hz 63A |
| Dimensions | 3600(L)*1250(W)*1650(H) |
