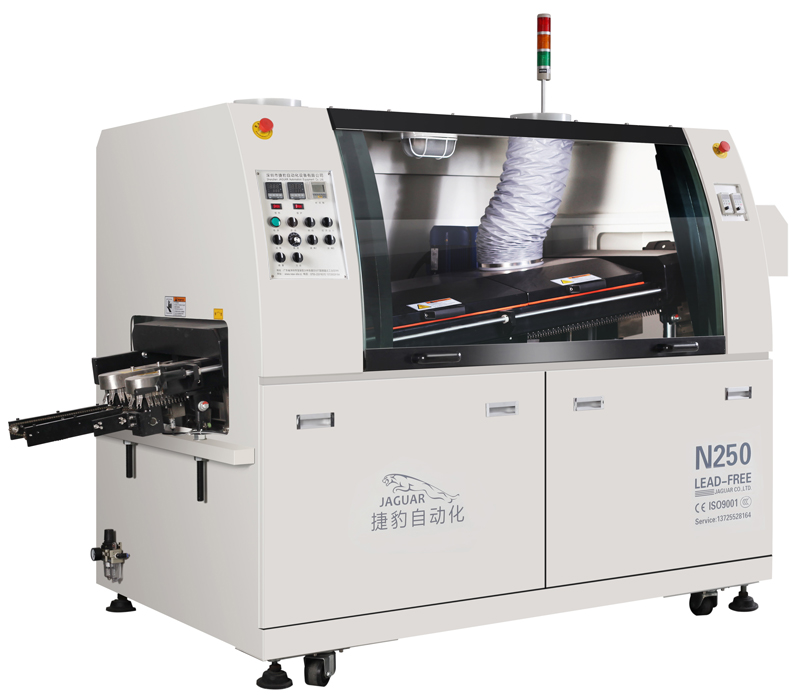

Lead-free Hot Air Wave Soldering Machine
JAGUAR N250 Lead-free Hot Air Wave Soldering Machine, as a member of Jaguar High-end series of Wave Soldering, standard configured 2 pre-heating zone, and totol pre-heating zone length up to 800mm, pre-heating zone structure is independ control, it's better to ensure pre-heat effect, and finally to ensure soldering effect. 3 kinds of material options (316L Stainless Steel ; Ti ; Cast Iron Enamel)
INTRODUCTION:
1. Automatic conveying power system and auto synchronous board
feeding functions.
2. Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.
3. Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.
4. PLC is used to control the machine, to ensure the reliability and stability of the system.
5. Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.
6. Special alloy solder fingers, strengthened double v-groove.
7. Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.
8. Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.
9.Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
10.Timer startup feature for solder pot, solder melted within 90 minutes.
11. Automatic finger cleaner ensure the cleanliness of solder fingers.
Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.
Configuration list : : | |
| Control system | SIEMENS control system + PC |
Conveyor motor | Taiwan Sanyue 90W gear box 1:100K |
Solder Fingers | Jaguar special double v-groove thickness 1.5mm |
Solder motor | Taiwan Sanyue three phase 6 pole 0.18kw high temperature resistant |
Pneumatic cylinder | Germany FEST |
Spray nozzle | Japanese lacquer ST-8 |
Solenoid valve, regulating valve, connector, etc. | Taiwan Yadeke |
Intermediate relay | Japan OMRON MY2 MY4 |
Frequency inverter | Taiwan Delta |
Heating element | Taiwan, imported nickel wire |
Axial cross-flow blower | Global goods |
Photoelectric switch | 24V NPN Swiss delight |
Proximity switch | Korea Autonics |
U type velocity measuring eye | OMRON |
| Solid-state relay | Switzerland Carlo |
Air switch | chint |
| AC contactor | chint |
Thermocouple | Insulation type K Taiwan reach |
Button switch | Schneider |
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by pneumatic cylinders. PLC controlled, accurate and reliable.
4. Preheating system uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
5. Titanium solder fingers, high strengthened double v-groove with tin resistant
|
|
