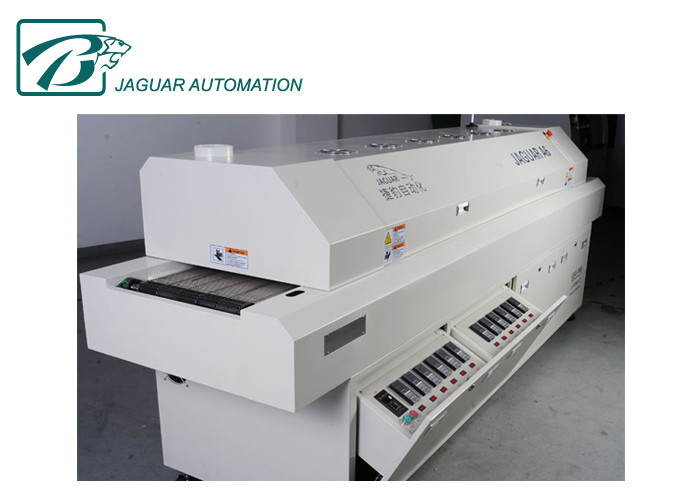

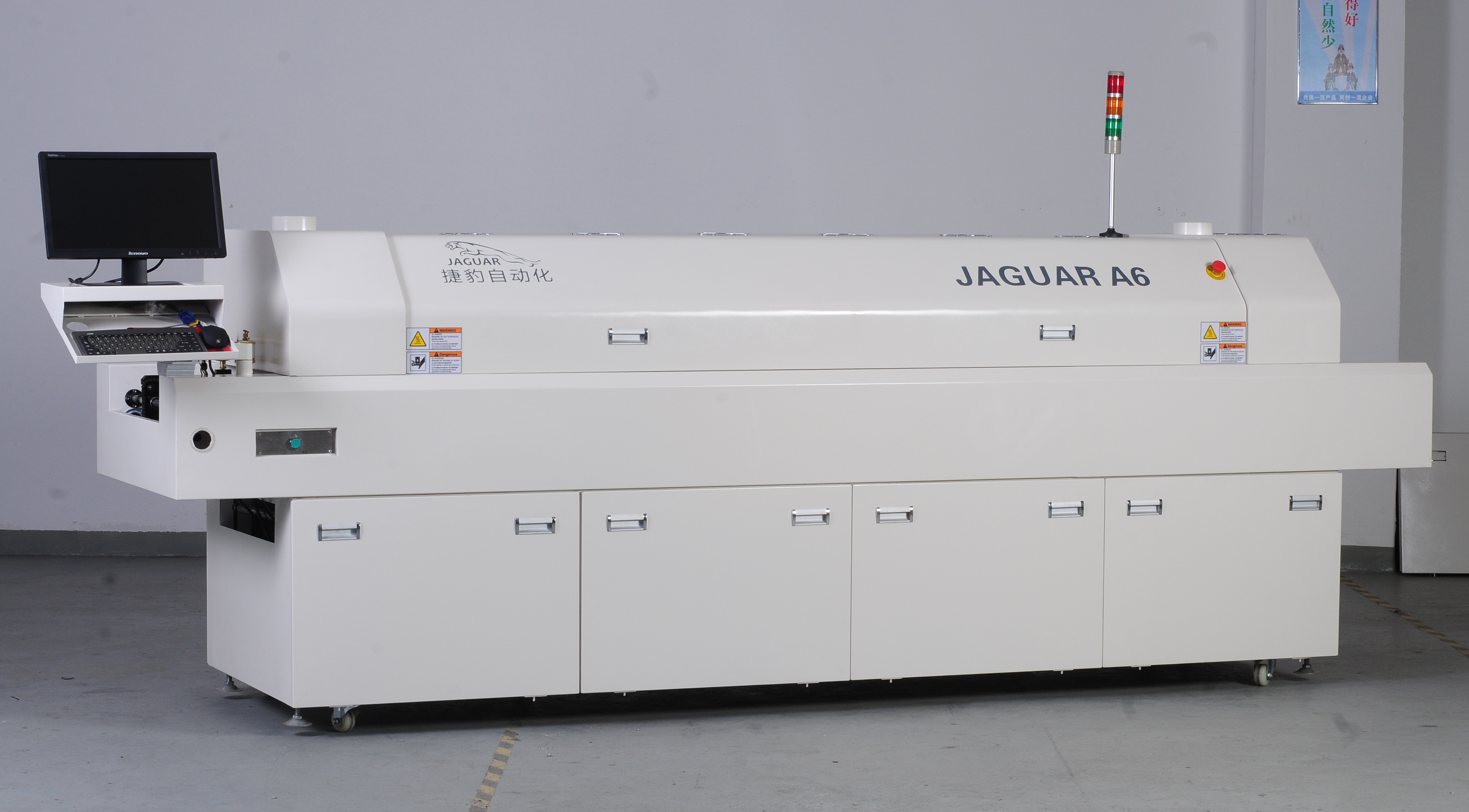

Economic Lead Free Hot Air Reflow Oven A6 Up 6 Hot Air Bottom 6 IR
Heating Zone
- JAGUAR's A6 Lead-free Hot Air Reflow Oven, is one of JAGUAR
Economic Series, also is a Basic model of Reflow Oven.
- Compact machine size can meet some customer's compact plant space.
- Independent up and bottom heating for Pre-heating Zone, Soldering
Zone and Cooling Zone
- Independent recycle, Independent temp. control, Independent cooling
zone
- Modular design, convenient to maintenance
Specification:
Model | JAGUAR A6 |
Heating System | Number of heating zones | Top 6/Bottom6 |
| Heating passage | 2400MM |
| Heating style | Top: hot air; bottom: IR |
| Cooling style | Force air |
Conveyor System | Max. Width of PCB | 350mm |
| Mesh belt width | 400mm |
| Conveyor Direction | L→R(or R→L) |
| Process Height | 880±20mm |
| Conveyor type | Mesh |
| Conveyor speed | 0-1500mm/min |
Control system | Power supply | 5 line 3 phase 380V 50/60Hz |
| Total power consumption | 28kw |
| Startup power consumption | 24kw |
| Steady consumption | 4KW |
| Ramp Up time | About 20 mins |
| Temp. setpoint | Room temperature-300℃ |
| Temp. control method | PID close loop control & SSR driving |
| Temp. deviation on PCB | ±2℃ |
| Data storage | Process Data and status storage (80 GB)(machine with PC) |
| Nozzle plate | Aluminum Alloy Plate |
| Abnormal Alarm | Abnormal temp. (overtemp/low temp.) |
| Board dropped alarm | Tower light: Amber-warning, Green-normal, Red-abnormal |
General | Dimension(L*W*H) | 3700×800×1320mm |
| Weight | 600KG |
| Color | Computer grey |
Advantages
The Unique Advanced Long Life Heating System
1. The heating system adopt the Swedish nickel heater with
efficiency and energy-saving.
2. The peak wave length of the radiation power is 4UM with curved
surface reflector increasing temperature ramp up speed, improve the
thermal efficiency.
3. The special forced-air circulation system make PCB and the
component heated uniform and eliminate the "shadow effect"
completely
4. Using special high temperature barrier structure for heat
preservation and special iron in heating passage.
5. Using imported Taiwan SanYue long shaft high temperature blower
motor and W shaped heat duct, no noise & vibration, convenient for
maintenance.
6. Heating zones with porous aluminum plate directing the hot air to
guarantee the heat evenly distributed to the PCB. Hood can open
completely so that convenient for cleanup.
The heating system adopt the Swedish nickel heater with efficiency
and energy-saving.
The peak wave length of the radiation power is 4UM with curved surface
reflector increasing temperature ramp up speed, improve the thermal
efficiency.
1.The special forced-air circulation system make PCB and the
component heated uniform and eliminate the "shadow effect"
completely.
2. Using special high temperature barrier structure for heat
preservation and special iron in Heating passage.
3. Using imported Taiwan SanYue long shaft high temperature blower
motor and W shaped heat duct, no noise & vibration, convenient for
maintenance.
4. Heating zones with porous aluminum plate directing the hot air
to guarantee the heat evenly distributed to the PCB. Hood can open
completely
so that convenient for cleanup.
Smooth and reliable transmission system
1. The conveyor system use STK adjustable speed motor imported from
Taiwan matched with the 1:150 turbine reducer can
running smooth, speed varies in 0-1000mm/min.
2. Independent roller structure support and match stainless steel
mesh belt to make the running smoothly and the speed
precision is up to ±20 mm/min.
3. Special stainless steel mesh belt: durable and wear-resistant, long
lifetime.
