Hot Air Reflow Oven,Eight Zones Reflow Soldering Oven with Dual Rails R8-D

Jaguar dual-track reflow ovens have been around for many years. By processing two circuit boards in parallel, the capacity of a single dual-track furnace can be doubled. Currently, circuit board manufacturers are limited to handling the same or similarly weighted boards in each track. Now, a dual-track dual-speed reflow oven with independent orbital speeds has become a reality with the simultaneous processing of two boards with larger differences.

Specification:

1. Detailed description
1.01 overall size 5300 * 1650 * 1600mm
1.02 Body Color Ivory
1.03 Net weight 2600kg
1.04 exhaust volume 10m3 / min × 2 channels
1.05 power supply 5 wires 3 phases; 380V 50 / 60HZ; (□ O: 220V 50 / 60HZ)
1.06 Power Starting Power 42kw Consumption Power 12-14kw
1.07 Heating time about 30mins
1.08 temperature range room temperature--300 ° C
1.09 Temperature control accuracy ± 1 ℃
1.10 PCB board temperature distribution deviation ± 1.5 ℃
1.11 Maximum PCB width 250mm * 2
1.12 Part height 20mm above 30mm
1.13 Transportation direction left to right (□ O: right to left)
1.14 Rail fixing method 1,4 (□ O: 2,3 fixed)
1.13 Height of rail from ground 900 ± 20 mm
1.14 Transport speed 300-2000mm / min
1.15 Parameter storage A variety of production setting parameters and conditions can be stored
1.16 Abnormal alarm Ultra high or low temperature alarm, sound and light two ways
1.17 Lubricating oil can be switched automatically and automatically

Device configuration
2.01 Number of heating / cooling zones Upper 10, lower 10 heating zones, upper 2 / lower 2 cooling zones
2.02 Control system WIN 7+ Lenovo business computer + PLC
2.03 Temperature control mode PID closed-loop control + SSR drive
2.04 temperature test line 3
2.05 Transportation system Rail + mesh belt transportation
2.06 Transportation control mode 4 inverters + imported transportation motor
2.07 chain structure
2.08 Guide rail structure
2.09 Rail width adjustment
2.10 Upper cover start The upper cover is opened electrically to facilitate cleaning in the furnace
2.11 UPS power supply power failure backup PCB production completed

Main application industries and scope:
Widely used in general electronic products, special service electronic products, high performance electronic products.

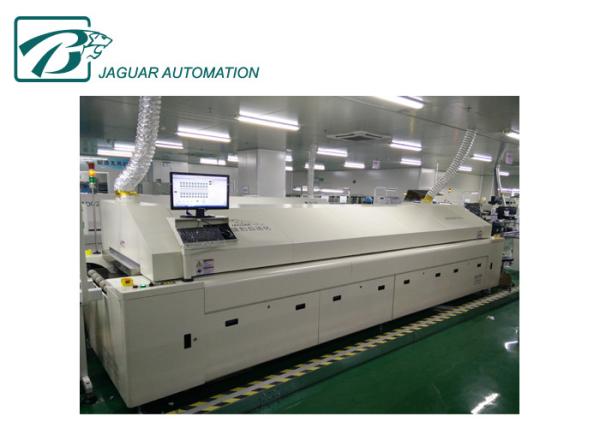

JAGUAR Lead Free Reflow Oven in the Customer Factory:

JAGUAR Lead Free Reflow Oven with the Central Support:

JAGUAR SMD Soldering Machine in Thailand Customer Factory:

Shenzhen Jaguar Automation Equipment Co., Ltd (referred to as "Jaguar") is a High-speed developing enterprise of High Precision Automatic lead-free Equipment such as reflow oven and wave soldering machine manufacturer, which specializes in lead free machine research and development.

As one of the well-known lead-free electronics equipment manufacturers in China, JAGUAR was founded in 2009 and headquartered in Shenzhen.

With full implementation of the PID process, reliability design concept and reliability testing throughout the entire product line, The company insists on market demand, established offices in various provinces and cities in the country.
