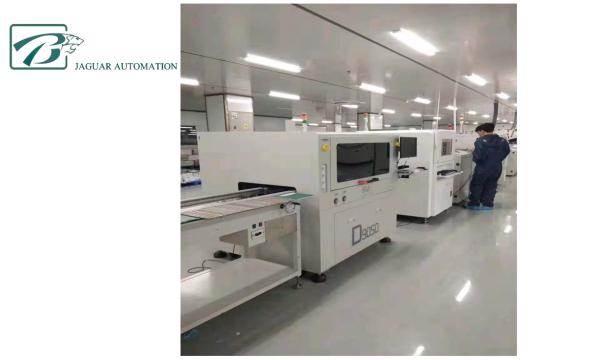

D9050 High Speed Glue Dispenser Machine D9050 Automatic Intelligent Glue Dispensing Machine
High dispense precision, meantime the production efficiency is increased at full speed, reach to 70000dot/h, dispense repeat precision keep to ±0.01mm.
Adpot non-contact spray dispensing technology, perfect avoid contact-dispense's disadvantage of glue icicles, nonuniform glue weight, damage to components and products, ensure dispensing quality.
Equipped powerful function module, flexible application.
D9050 is your best selection of high precision dispensing.
| Model | D9050 In Line Automated Fluid Dispensing System |
| XY/Z speed | Max:1000 (mm/s) |
| X/Y/Z Working Range | X300mm*Y350mm*Z100mm |
| Workpiece Payload | Y axis 25kgs /Z axis 8kgs |
| Motion /Drive System | Stepper-Motor, Ball Screw, Linear Slide |
| Repeatability Accuracy | ±0.01mm/Axis |
| Positioning | 300,000 Resolution CCD Vision Camera |
| Dispensing Speed | 200dot/s(Pneumatic jet valve) 1000dot/s(Piezoelectric jet valve) |
| Control Method | Industrial Computer + Motion Controller + LCD Display |
| Control Software | Jaguar Dispensing Control Software ( Windows Based) |
| Memory Capacity | 1000 Programs - Unlimited (Data Storage via USB) |
| Laser Height Measurement | Automatic Laser Height ( precision: 0.001mm) Detection & Z Axis Height Calibration Optional |
| Low Fluid Sensor/ Warning | Optional |
| Max Dispensing area | 900*500mm |
| Patterns | Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting |
| Power Supply | AC220V,50/60Hz,1Kw |
| Air Pressure | 0.4-0.6Mpa,0.2m³/h |
| Working Temperature | 5-40°C |
| Relative Humidity | 20-90% (no condensation) |
| Dimensions (W x D x H) mm | L1380*W1300*H1480mm |
| Weight | 900Kg |
| Communication Protocol of Upper-Lower Computers | Customized |
| Conveyor System | 1 Conveyor belt, 2 segment Conveyor Height: 920±20mm Transfer Speed: 0-6m/min Transfer Payload: 3kg |
| Standard | CE FCC ROHS Approved |
High Speed Jet Valve:
OPTIONS:
1. Large capacity glue supply system(300CC), suitable for long feeding dispensing
2. Weight Scale to improve dispense weight control precision
3. Laser Height Sensor
Automaticity
Equipped with SMEMA interface, convinient to connect other
OPTIONS:
1. Waiting board function, reduce product waiting time
|
|
