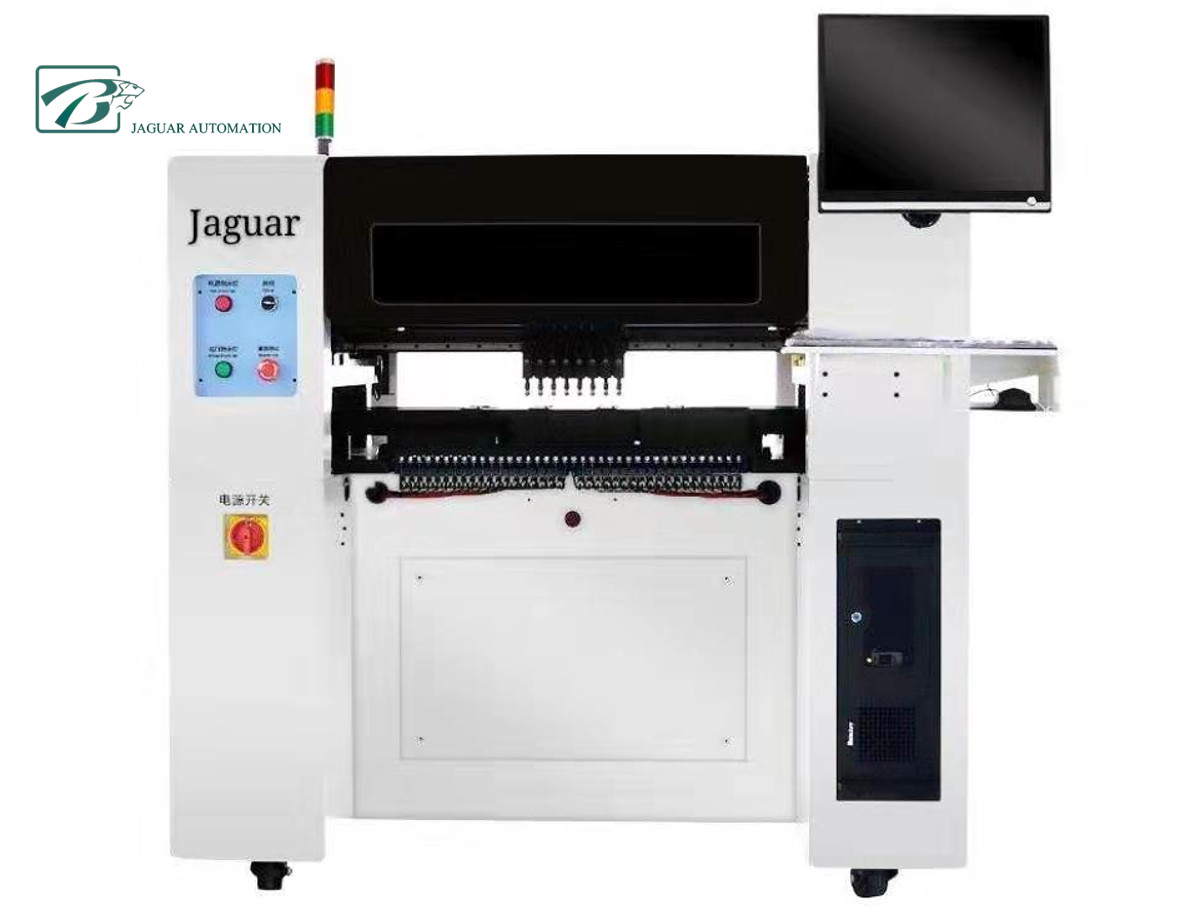

Jagaur Top 8 Pick and place machine

Feature:

【technical parameters】

○ Number of feeders:68pieces

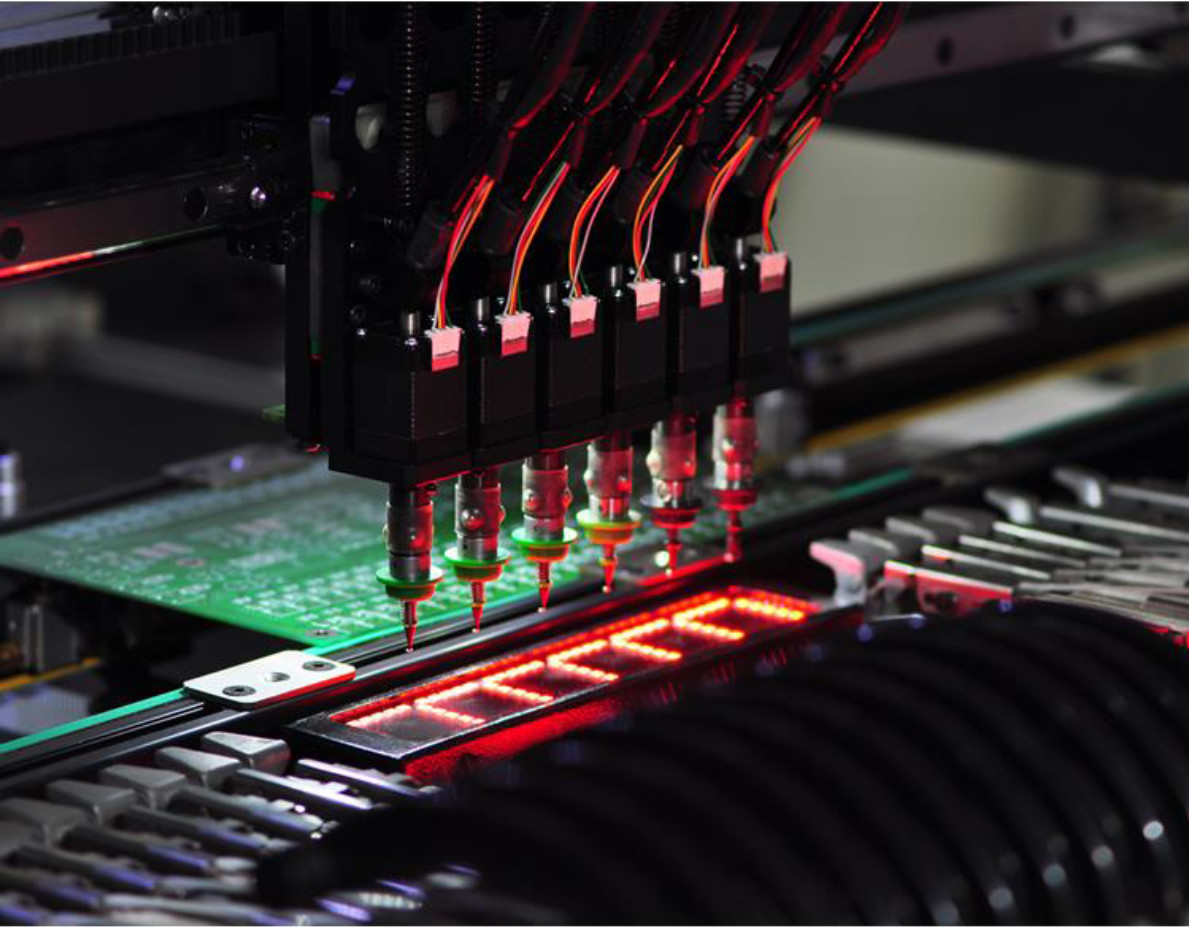

○ Number of mounting head:8head

○ Number of pallets:8pieces

○ Average power:500W

○ positioning accuracy:0.01mm

○ Nozzle buffer range:4.5mm

○ Power Supply:220V, 50Hz

○ Compressed air: 0.5-0.6Mpa

○ Drive motor: Panasonic servo motor /HW-QiGn stepper motor

○ Identification mode: six head synchronous identification

○ Suction nozzle vacuum source:High speed on-off vacuum generator with vacuum destruction

○ Maximum board area:625×455mm

○ XY maximum range of motion:629×679mm

○ Z axis maximum range:20mm

○ Belt feeder: 8, 12, 16, 24mm and vibration feeder (can be attached to the chip)

○ Maximum theory speed: 25000 Pcs/ hours

○ LED, resistance capacitance actual patch speed: 12000 Pcs/ hours

○ Hybrid visual mount average patch speed 8500Pcs/ hours

○ XYZ drive rail: TBI high precision heavy duty linear guide rail.

○ Motion drive system: Panasonic AC servo -A6 driver

○ Operating system: Based on the Windows operating system, China JAGUAR record company independent research and development automatic placement machine operating system, support Windows XP, win7 operating system

○ Component angle: 0-360 degrees at any angle, the movement of synchronous rotation

○ X/Y mode of operation: QiGn-2017 version of intelligent curve acceleration and deceleration linkage system

○ MARK point positioning: automatic scanning (can be arbitrarily set MARK points)

○ Intelligent alarm: automatic correction, Automatic patch, lack of material alarm

○ Into the plate mode: single segment from left to right transmission, can be connected to the automatic connection platform system, automatic PCB transmission positioning. Thimble positioning, manual release plate.

○ Visual display: 17 inch industrial control display ratio 4:3 resolution 1280x1024

○ Programming mode: peer to Peer programming, visual programming, PCB file import, etc.

○ Optimization mode: three automatic optimization modes (including V2017 intelligent optimization)

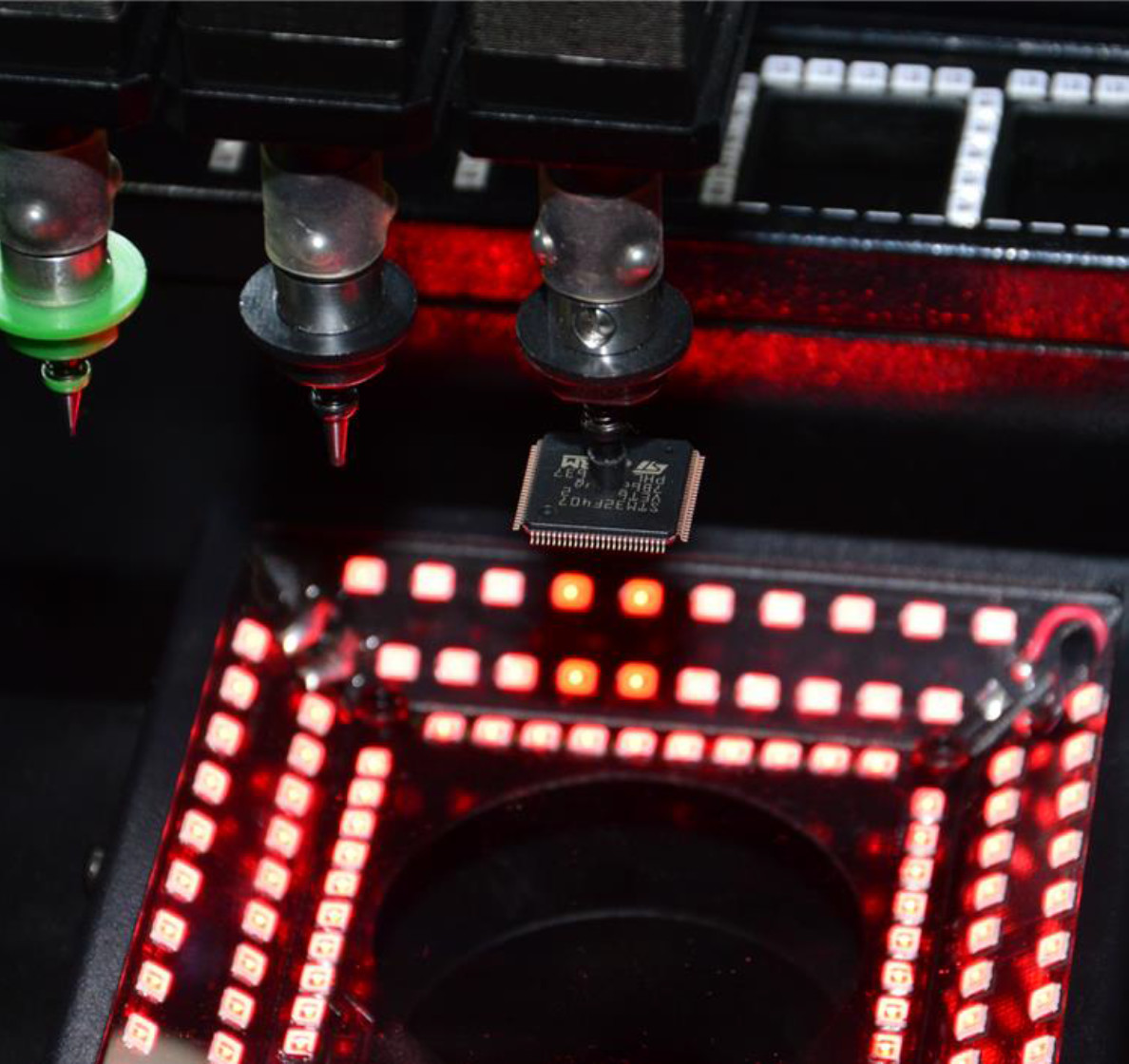

○ To identify the number of cameras: a Mark recognition camera, six high speed identification camera, a high resolution precision recognition camera

○ Applicable scope:adapt 0402, 0603, 0805, 1206, two tubes, transistors, SOT, and 40*40mm in the range of pin spacing is greater than or equal to 0.3mm (0.5mm from the QFP BGA pin center), etc..

○ Product weight:500KG

○ Size (length and width): 1450*1370*1350mm (without display and keyboard)
