JAGUAR-R20C-IN Automatic Online Vertical Insert Machine with Two Span 20 Feeder

- Theoretical Speed:17000CPH
- Insert Direction:0～360°the increment is 1°
- Pin span:(Optional)

2.5;

2.5/5.0；

2.5/5.0/3.5(3.5 can option turn inside or outside)；

2.5/5.0/7.5；

5.0/7.5/10.0

2.5/5.0/7.5/10.0
- PCB Size:Minimum 50mm*50mm,Maximum 285mm*400mm
- PCB Thickness:0.79～2.36mm
- Conveyor Height:900 +/-20mm
- Conveyor Width:50mm-285mm(adjustable)
- Component Specification: maximum height 23mm, maximum diameter 13mm

- Component Type: capacitor, transistor, triode, LED lamp, key switch, resistor, connector, coil potentiometer, fuse holder, fuse wire, and other vertical tape packaging material

- Feed Cylinder Drive

- Base Lift Cylinder Drive
- Lead Length Tolerance:1.2/1.5/1.8 mm
- Insert Bending Angle :10~35 degree outside bending
- Feeder Capacity:20, optional(30,40,60,80,100)
- Appearance Size: L1920xD1450xH1700 mm
- Feeder Station Size: 1800x1450x1100 mm
- Weight:Approx.1200KG
- Power Supply:220V,AC(Single phase)50/60HZ
- System Protection:Configure UPS
- Power Consumption:1.5KW(Energy-saving type)
- Air Supply Pressure:0.6MPA
- Air Flow:0.3CBM/Min.
- Environmental Conditions: ambient temperature 5-25°
- Noise :65 decibels
- Hole Correction Mode: machine vision system
- Drive System: AC servo, AC motor
- Data Input: USB interface input (EXCEL document format)
- Control System: Chinese operating interface (WINDOWS system control platform) LCD display
- Control Mode: automatic, and semi-automatic, manual
- Element Density: high density insertion mode
- Feeding Mode: motor feeding board left to right (optional)
- Programming Mode: manual programming

FEEDER STATION:

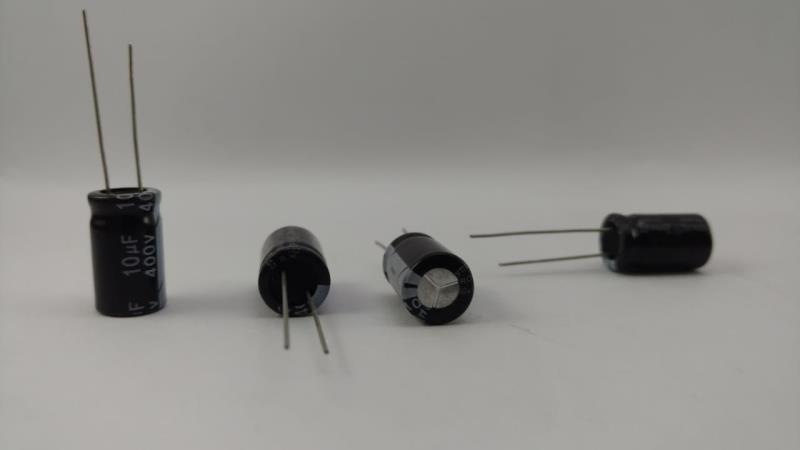

Applicable Components, For Example:
