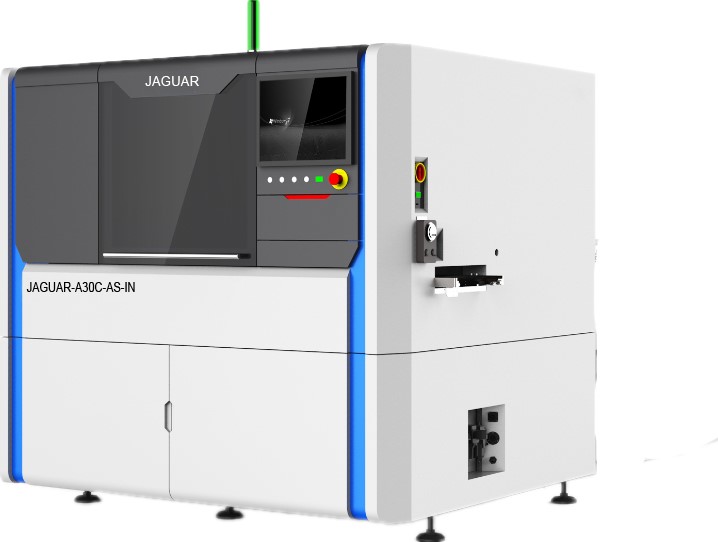

JAGUAR-A30C-AS-IN Horizontal Couplet In-line Insert Machine 20 Feeder

Through-hole technology is a traditional electronics PCB assembly technology, it has been plagued by high participation of manual operating, up to now, the contradiction between manpower shortage and demand is getting bigger and bigger, how to reduce manual operating? the answer of course if machine. JAGUAR-A30C-AS-IN is a widely application insert machine, suitable for most horizontal plug-in components.

• Max Speed:19000CPH
• Insert Direction: 4 directions: 0°,90°,180°,270°
• Alignment system: passive clamp + CAM alignment
• Components Speed:Component 5.0mm～20mm(Jumper 5mm～22mm )
• PCB Size:Minimum 50mm*50mm,Maximum 285mm*350mm
• PCB Thickness:0.79～2.36mm
• Conveyor Height: 900mm
• Conveyor Width:50mm-285mm(adjustable)
• Component Type:capacitor,transistor,diode, resistance,inductance,fuse wire and so on tape packaging materials
• Jumper (JW): independent transmission mode. Diameter: 0.5mm~.6mm tinned copper wire
• Insert Bending Length :1.2-2.2mm(adjustable)
• Appearance Size: L1800xD1450xH1500 mm
• Feeder Station Size:2000mm× 1000mm× 1500mm
• Feeder Capacity: 20
• Weight:1200kg
• Power Supply:220V,AC(Single phase)50/60HZ,1.5KVA;
• System Protection:Configure UPS
• Power Consumption:1.5KW(Energy-saving type)
• Environmental conditions: ambient temperature 5~25 degrees
• Machine noise: 60 decibels
• Hole Correction Mode: machine vision system
• Drive system: AC servo AC motor
• Delivery Mode: double chain and double servo drive
• Data Input: USB interface input (EXCEL document format)
• Control system: Chinese operating interface (WINDOWS system control platform) LCD display
• Control Mode: automatic and semi-automatic
• Feeding Mode: motor feeding board left to right (optional right to left)
• Programming Mode: manual programming

FEEDER STATION:

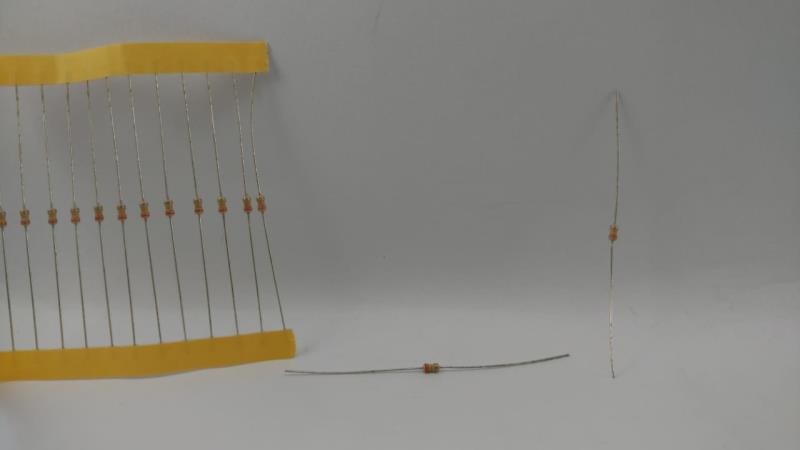

Applicable Components, For Example:

Working Picture

Please contact me if you have inquiry!
