R8 High-end Dual Track Hot Air Lead-free Reflow Oven with Centrol Support
Compare to Air Reflow Oven, Nitrogen Reflow Oven's Flux recycle system equiped in both front and rear of machine, it's better for flux recyle, and help keep long-time clean of oven. Heat wires and motor modularization design, more easy to maintenance, labor saving.
Specification:
| Model | JAGUAR R8 | |
Heating System | Number of heating zones | Top 8/Bottom 8 |
| Number of cooling zones | Up3 Bottom 3 | |
| Heating passage | 3121mm | |
| Heating style | Hot air | |
| Cooling style | Air Oven: Forced air; Nitrogen Oven: Water Chiller | |
| Exhaust Volume | 10m³/min * 2 vanes | |
Conveyor System | Max. Width of PCB | 420mm |
| Mesh belt width | 500mm | |
| Conveyor Direction | L→R(or R→L) | |
| Process height | 900±20mm | |
| Conveyor type | Mesh and Chain | |
| Conveyor speed | 0-2000mm/min | |
| Auto/manual Lubrication | standard | |
| Fixed track | Front rail fixed(option: rear rail fixed) | |
| Product clearance | Top and bottom 25mm | |
Control system | Power supply | 5 cables 3 phase 380V 50/60Hz |
| Total consumption | 40kw | |
| Startup consumption | 38kw | |
| Steady consumption | 8KW | |
| Ramp up time | About 20 mins | |
| Temp. set-point range | Room temperature-300℃ | |
| Temp. control method | PID close loop control & SSR driving | |
| Temp. control precision | ±1℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Data storage | Process Data and status storage(80GB) | |
| Nozzle plate | Aluminum Alloy Plate | |
| Abnormal Alarm | Abnormal temp. (over-temp/low temp.) | |
| Board dropped alarm | Light Tower: Amber-warming, Green-normal, Red-abnormal | |
General | Dimension(L*W*H) | 5300×1400×1550mm |
| Weight | 2200KG | |
| Color | Computer grey | |
| No. | Spares Name | Brand | Origin |
| 1 | Heating Tube | Hotset | Germany |
| 2 | Intermediate relay | Schneider/CHNT(standard) | France/China |
| 3 | Contactor | Schneider/CHNT(standard) | France/China |
| 4 | Power supply | MW | Taiwan |
| 5 | Binding post | Phoenix | America |
| 6 | Inverter | Rockwell/Delta | America /Taiwan |
| 7 | Solid-state Relay | Carlo Gavazzi | Switzerland |
| 8 | Emergency button | Schneider | France |
| 9 | LED Tricolor light tower | Skoda | China |
| 10 | Conveyor motor/Tooth box | Panasonic | Japan |
| 11 | High Temperature motor | Sanyue | Taiwan |
| 12 | Thermal fuse | Hotset | Germany |
| 13 | Connecting shackle | KMC | Taiwan |
| 14 | High temperature cable | Hotset | Germany |
| 15 | Fan | Sunon | Taiwan |
| 16 | Mesh belt | KMC/TSUBAKI | Taiwan/Japan |
| 17 | Display | Lenovo | China |
| 18 | Computer | Lenovo | China |
| 19 | PLC | Siemens | Germany |
| 20 | Chain | KMC/TSUBAKI | Taiwan/Japan |
| 21 | Guide rail | JAGUAR | China |
Reliable Heating Zone Structure
※ Patented air management system to make hot air convection more efficient and faster thermal compensation
※ Nozzle plate made from 8mm thick aluminum plate
※ The longer heating zones to ensure perfect profile matching, meantime can get high production efficiency
Reliable Control system
※ Siemens PLC+Industrial PC with precise controlling unit and stabilized performance
※ PID close loop control + SSR driving to ensure the temp. control precision up to ±1°c and the temp. Deviation on PCB up to ±1.5°c

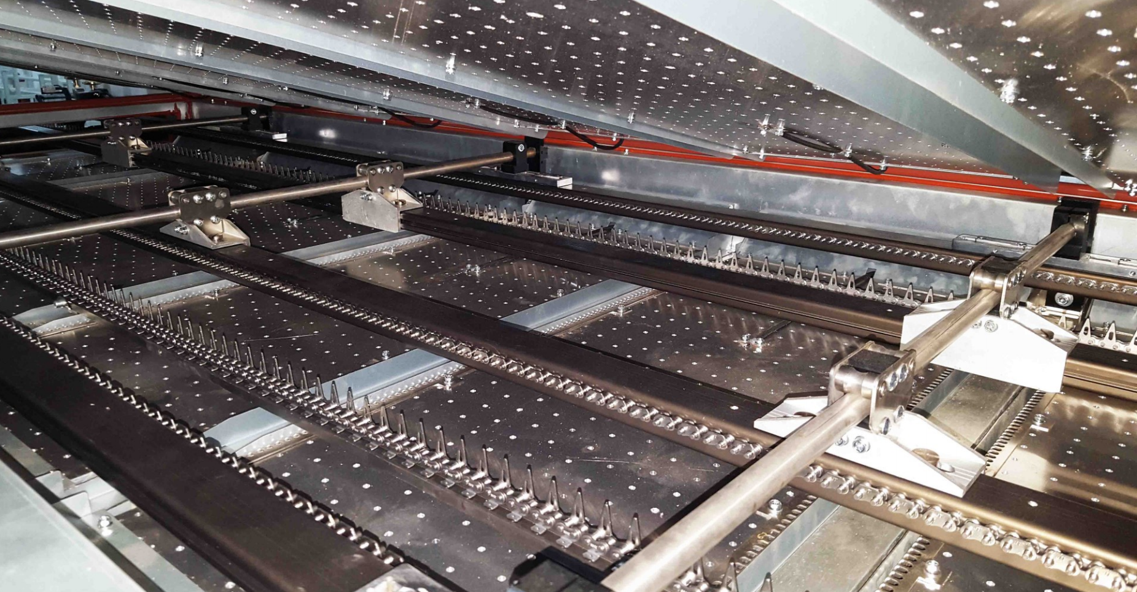

Reliable Conveyor System
※ The rail is dealt with hardened process to make it more stability
※ The conveyor chain adpoted with single Pin-plate design, simple and pratical
R8 Installed in Our Customer's Factory
|
|
