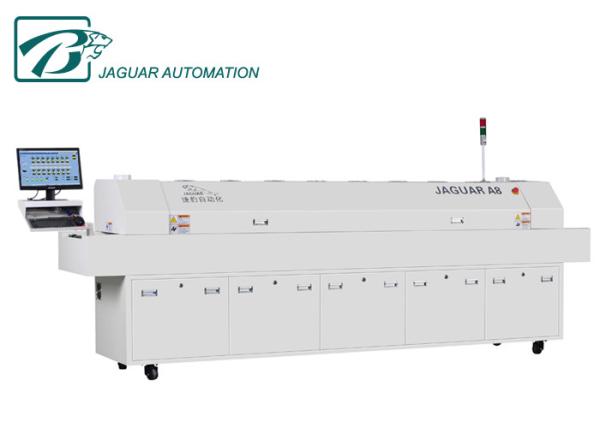

Eight Hot Air Bottom Small Reflow Oven , Durable Smd Mounting Machine

Economic Lead Free Hot Air Reflow Oven A8 Up 8 Hot Air Bottom 8 IR Heating Zone

JAGUAR's A8 Lead-free Hot Air Reflow Oven, is one of JAGUAR Economic Series, also is a Basic model of Reflow Oven.
Compact machine size can meet some customer's compact plant space.
Independent up and bottom heating for Pre-heating Zone, Soldering Zone and Cooling Zone
Independent recycle, Independent temp. control, Independent cooling zone
Modular design, convenient to maintenance

Model	Jaguar A8
Heating System
Number of heating zones	Top 8/Bottom8
Heating passage	2800MM
Heating style	Top: hot air; bottom: IR
Cooling style	Force air
Conveyor System
Max. Width of PCB	350mm
Mesh belt width	400mm
Conveyor Direction	L→R(or R→L)
Process Height	880±20mm
Conveyor type	Mesh
Conveyor speed	0-1000mm/min
Fixed track	Front track fixed(option: rear track fixed)
Control System
Power supply	5 line 3 phase 380V 50/60Hz
Total power consumption	24kw
Startup power consumption	18kw
Steady consumption	2-3KW
Ramp Up time	About 15 mins
Temp. setpoint	Room temperature-300℃
Temp. control method	PID close loop control + PC
Temp. control precision	±1℃
Temp. deviation on PCB	±2℃
Data storage	Process Data and status storage (80 GB)
Nozzle plate	Aluminum Alloy Plate
Abnormal Alarm	Abnormal temp. (overtemp/low temp.)
Board dropped alarm	Tower light: Amber-warning, Green-normal, Red-abnormal
General
Dimension(LWH)	4200×800×1320mm
Weight	800KG
Color	Computer grey

Advantages

The Unique Advanced Long Life Heating System

1. The heating system adopt the Swedish nickel heater with efficiency and energy-saving.

2. The peak wave length of the radiation power is 4UM with curved surface reflector increasing temperature ramp up speed, improve the thermal efficiency.

3. The special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely

4. Using special high temperature barrier structure for heat preservation and special iron in heating passage.

5. Using imported Taiwan SanYue long shaft high temperature blower motor and W shaped heat duct, no noise & vibration, convenient for maintenance.

6. Heating zones with porous aluminum plate directing the hot air to guarantee the heat evenly distributed to the PCB. Hood can open completely so that convenient for cleanup.
