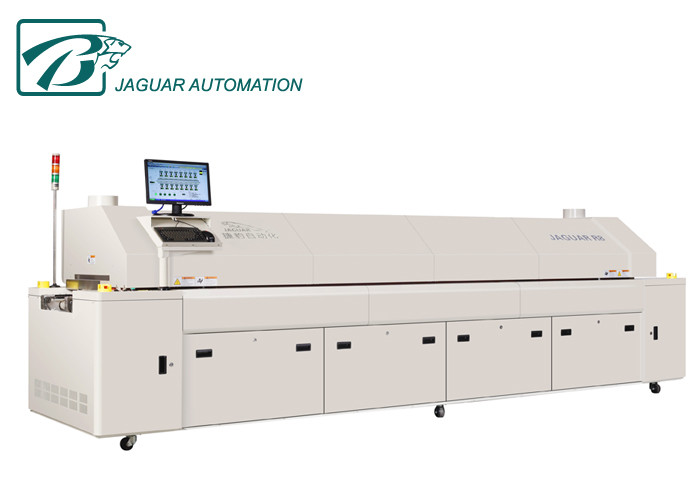

SMD Reflow Oven R8,SMT Line Soldering Equipment SMD Adhesive SMT Reflow Oven for Potting
Introduction:
1. Windows XP system with English and Chinese is easy to learn how
to operate and can be change any time.
2. The digital control system adopted with PLC and Modular circuit
to stabilized and accurate of repetitive precision.
3. Intelligent diagnosis system (IDS) has the function of trouble
remind, alarm, list-out and saving data.
4. Temperature and blower speed can be controlled independently, to
meet the high-precision requirements.
5. Effective heating zone length, the heat conduction in full
uniform distribution, greatly improving the heating efficiency.
6. Forced cooling system with efficient cooling speed suits all
different kinds of lead-free soldering paste.
7. PLC and PID closed loop control to achieve high precision
temperature control and repeatable profiles.
8. Standard 8 couples of up and down zones with patented air
management system to make hot air convection more efficient and
faster thermal compensation.
9. The rail is dealt with hardened process to make it more
stability.
10. The rail width can be adjusted by manual.(option:automatically
by SPG gear motor).
11. Chain Rails will be lubricated by central oil reservior device
,controlled by computer.
12. Strong software system can save all settings and can print all
the data and profiles through PC.
13. With flux collecting system to keep inside zones clean and
ensures more environmental emission.
14. Nitrogen with machine is option.
Specification:
| Model | JAGUAR R8 | |
Heating System | Number of heating zones | UP 8/BOTTOM 8 |
| Number of cooling zones | 2 | |
| Length of heating zones | 3600mm | |
| Heating mode | hot air | |
| Cooling Mode | Air Oven:Forced air; Nitrogen Oven: Water Chiller | |
| Exhaust Volume | 10m³/min * 2 exhausts | |
Conveyor System | Max. Width of PCB | 450mm |
| Mesh belt width | 500mm | |
| Transmission Direction | L→R(or R→L) | |
| Transmission Net Height | 900±20mm | |
| Transmission type | Mesh and chain | |
| Range of rail width | 0-400mm | |
| Conveyor speed | 0-2000mm/min | |
| Auto/manual Lubrication | standard | |
| Fixed rail side | Front rail fixed(option: rear rail fixed) | |
| Components high | Top and bottom 25mm | |
Control system | Power supply | 5 line 3 phase 380V 50/60Hz |
| Total power | 40kw | |
| Starting power | 38kw | |
| Normal power consumption | 8KW | |
| Warming time | About 20 mins | |
| Temp. setting range | Room temperature-300℃ | |
| Temp. control method | PID close loop control & SSR driving | |
| Temp. control precision | ±1℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Data storage | Process Data and status storage(80GB) | |
| Nozzle plate | Aluminum Alloy Plate | |
| Abnormal Alarm | Abnormal temp. (extra-high/extra-low temp.) | |
| Board dropped alarm | Tower light:Yellow-warming, Green-normal, Red-abnormal | |
General | Dimension(L*W*H) | 5300×1400×1550mm |
| Weight | 2200KG | |
| Color | Computer gray | |
JAGUAR SMD Soldering Machine F8 in Thailand Customer Factory:
|
|
