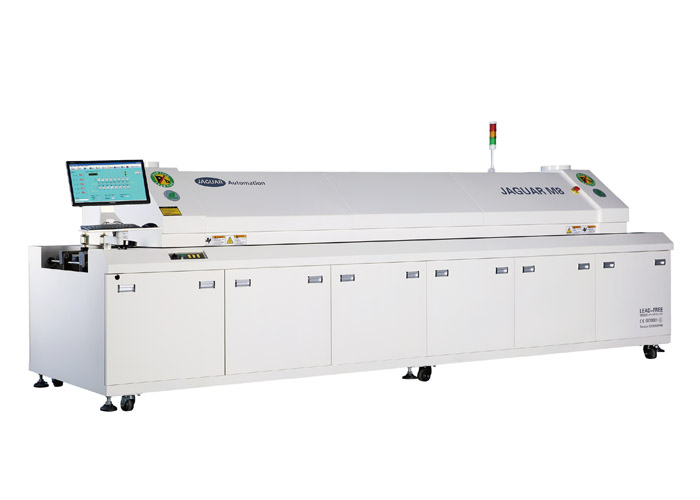

Jaguar Hot Air Lead Free Reflow Oven Machine M8
Specification:
| Model | SMT reflow oven Jaguar M8 | |
Reflow oven Heating System | Number of heating zones | Up 8/ bottom 8 |
| Number of cooling zones | 2 | |
| Length of heating zones | 2900mm | |
| Heating mode | Hot air | |
Reflow oven Conveyor System | Max. Width of PCB | 350mm |
| Mesh belt width | 400mm | |
| Transmission Direction | L→R(option: R→L) | |
| Transmission Net Height | 900±20mm | |
| Transmission type | Mesh and chain | |
| Range of rail width | 50-400mm | |
| Conveyor speed | 0-1000mm/min | |
| Auto/manual Lubrication | Standard | |
| Fixed rail side | Front rail fixed(option: rear rail fixed) | |
| Components high | Top and bottom 25mm | |
Reflow oven Control system | Power supply | 5 line 3 phase 380V 50/60HZ |
| Total power | 26KW | |
| Starting power | 30KW | |
| Normal power consumption | 5-8KW | |
| Warming time | 20 mins | |
| Temp. setting range | From room temp. To 300℃ | |
| Temp. control method | PID close loop control & SSR driving | |
| Temp. control precision | ±1℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Data storage | Process Data and status storage(80GB) | |
General | Dimension(L*W*H) | 4600*1100*1490mm |
| Weight | 1000kg | |
| Color | Computer gray | |
Reflow oven introduction:
1. The brand computer and Siemens PLC intelligent control system, high precision temperature control is ± 1-2 ℃ (if the computer crash accident, it can realize off-line work, do not affect production) and to ensure that the control system is stable and reliable;
2. Windows XP operating interface with powerful and simple operation.
3.In order to ensure safety and reliability, the cylinder body can be lift up automatically.
4. Device is equipped with mesh belt, transport smoothly, no shaking and no deformation, which ensure smooth PCB transport. Synchronous guide transmission mechanism and automatic SMT machine online connection ensure that guide adjustable wide precision and high service life.
5. Automatic control lubrication system and automatic lubrication transmission chain.
M8 Reflow oven detail:
Control System And Heating System:
1. Stability control system;PID closed loop controls,sampling interval of 0.2sec,
2. independent heating zone shutdown features.Built-in standby power supply.
Reliable Conveyor System:
1. The rail is dealt with hardened process to make it more stability.
2. The conveyor chain adpoted with single Pin-plate design,Simple and practical.
|
|
