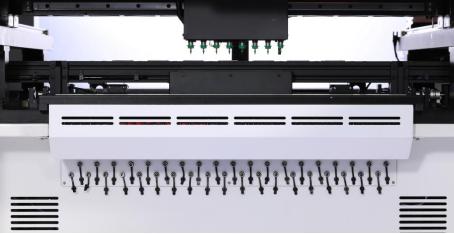

JAGUAR-A8L 8 Heads SMT Pick and Place Machine
JAGUAR-A8L pick and place machine configured 8 heads and 70 feeder stations, it's max speed can reach to 15000CPH, it's a high precision pick and place machine
SPECIFICATION:
| Feeder No. | 70 (Front 38, rear 32) | IC Tray No. | Support 12 sets |
| Mounting Heads | 8 | XYZ Drive Guide Rail | TBI High-precision heavy-duty straight-line guide rail |
| Average Power | 750W | ||
| Positioning Accuracy | 0.01mm | Motion Drive System | Panasonic High speed DPS driver |
| Nozzle Buffering Range | 5.0mm | Operating System | Independent development based on Windows operating system, support Windows XP, Win7 |
| Weight | 550KGS | ||
| Power Supply | 220V, 50Hz | Component Angle | 0~360°, synchronized rotation in motion |
| Compressed Air | 0.5-06Mpa | X/Y Running Mode | Intelligent curve acceleration and deceleration linear linkage |
| Driving Motor | Panasonic servo motor | ||
| Rail Guide Adjustment Mode | Manual + Automatic | Alarm when open covers | deceleration or stop |
| Mounting optimization | Program automation, continue production after mounting completed, no need to wait for resetting | X/Y Transmission Mode | Imported TBI high-precision ball screw rod + imported TBI heavy-duty linear guide |
| Nozzle Vacuum Source | High-efficiency & energy-saving vacuum pump and vacuum tank | Mounting Mode | Manual. Semi-automatic, Automatic |
| Operating Window | Dual displays operation front and rear, more humane design | ||
| Convenient Button | Offline, reset, automatic operation, clear alarm | Automated connection | Can automatically connect signal equipment at both end |
| Max. Circuit Board Area | 650x380mm | Board Input Method | Three-stage transmitting boards-automatic connection from left to right, automatic PCB transmission positioning |
| XY Max. Movement Range | 750x670mm | ||
| Z Axis Max. Movement Range | 20mm | Visual Display | 2pcs of 17” industrial control display ratio 4:3, resolution 1280X1024 |
| Belt Type Feeder | 8/12/16/24/32mm feeders, vibration feeder | Programming Mode | Point-to-point programming, visual programming, PCB file coordinates inputting, etc. |
| Max. Mounting Speed | 15000CPH | ||
| Average Mounting Speed | 12000CPH (Visual) | Recognition Camera No. | 1 Mark recognition camera, 8 high speed recognition camera, 1 high-precision 8 million pixel recognition camera |
| Dimensions | 1500x1280x1410mm | ||
| Applicable Mounting Range: Suitable for 0201, 0402, 0603, 0805, 1206, LED lamp beads, diodes, transistors, SOT, 45mm*45mm range pin pitch ≥0.3mm QFP, BGA etc. | |||
Product Advantages:
1.Total 10pcs of cameras: 1PC of Mark recognition camera, 8pcs of high speed recognition camera, 1PC of 8 million pixel high-precision recognition camera, synchronously recognize, effectively ensure mounting speed and precision. What’s more, precision camera redesigned as the postposition structure, more place to hold feeders for the front part, improve the efficiency of placement.
2.Adopt imported JUKI nozzle spring buffer, not easy to drop components when picking and placement, convenient to install and durable. Up to 4 groups of components can be picked up at the same time, which improves the picking up speed and work efficiency of the machine.
3.XY drives adopt imported TBI high precision lapping ball screw + heavy-load linear guide, fast positioning, low noise and high precision. Precision control error can reach 0.018mm..
4.Adopt Japan Panasonic A6 series AC servo motor, the encoder with 23Bit precision, 8 times higher than A5 series.
5.3-section automatic inputting board mode: board waiting mounting, board mounting, and board waiting outputting, which greatly reduces the transmission distance and increase the number of board. Save much time, and improve the efficiency.
6.Change the traditional way of positive pressure turning into negative pressure to pick up components, built-in high-efficiency & energy-saving vacuum pump and vacuum tank, equipped with the latest r&d vacuum damage system. Greatly improve the efficiency of picking up the components, eliminate the noise caused by positive pressure turning into negative pressure, delay and reduce the frequency of air compressor start-up, effectively improve the life of air compressor.
7.Can hold 70pcs of 8mm pneumatic feeders simultaneously, reserved 38 electric feeder interface, could switch feeder type at random, also could be electric, pneumatic feeder mixture. Accurately mount 0201-5050 resistance, LED lamp beads, diodes, transistor, SOP, chip QFP-256, 45mm*45mm range QFP, BGA etc.
|
|
