JAGUAR-A4 Desktop Automatic SMT Pick and Place Machine
JAGUAR-A4 pick and place machine is a Desktop machine, which configured 4 heads and 46 feeder stations, it's max speed can reach to 7000CPH, it's high precision pick and place machine
SPECIFICATION:
| Feeder No. | 46 | Product Weight | 240KGS |
| Mounting Heads | 4 (No need to change Nozzle) | XYZ Drive Guide Rail | TBI High-precision heavy-duty straight-line guide rail |
| Average Power | 600W | ||
| Positioning Accuracy | 0.01mm | Motion Drive System | Panasonic High speed DPS driver |
| Nozzle Buffering Range | 5.0mm | Operating System | Support Windows XP, Win7 operating system |
| Power Supply | 220V, 50Hz | Component Angle | 0~360°, synchronized rotation in motion |
| Compressed Air | 0.5-06Mpa | X/Y Running Mode | Intelligent curve acceleration and deceleration linear linkage |
| Driving Motor | Panasonic servo motor | ||
| Mounting optimization | Program automatically optimization, continue production after mounting completed, no need to wait for resetting | Placement Mode | Manual, semi-automatic, fully-automatic |
| Convenient Button | Offline, reset, automatic operation, clear alarm | ||
| Nozzle Vacuum Source | High-speed on-off vacuum generator with vacuum damage | Alarm when open the cover | Reducing speed or stop |
| Max. PCB Area | 480x300mm | Automated connection | Can automatically connect signal equipment at both end |
| XY Max. Movement Range | 556x680mm | Rail Guide Adjusting Method | Manual + Automatic |
| Z Axis Max. Movement Range | 20mm | Visual Display | 15" industrial control display ratio 4:3, resolution 1024x768 |
| Belt Type Feeder | 8/12/16/24/32mm feeders, stick feeder | Programming Mode | Point-to-point programming, visual programming, PCB file coordinates inputting, etc. |
| Max. Mounting Speed | 7000CPH | ||
| Average Mounting Speed | 5000CPH (Visual) | Recognition Camera No. | 1x Mark camera, 4x high-speed camera, 1x 500 million pixels high-precision camera |
| Dimensions | 1180x1080x880mm | ||
Applicable Mounting Range: Suitable for 0402, 0603, 0805, 1206, LED beads, diodes, transistors, SOT, 40mm*40mm range pin pitch ≥0.3mm QFP, BGA etc. | |||
Product Advantages:

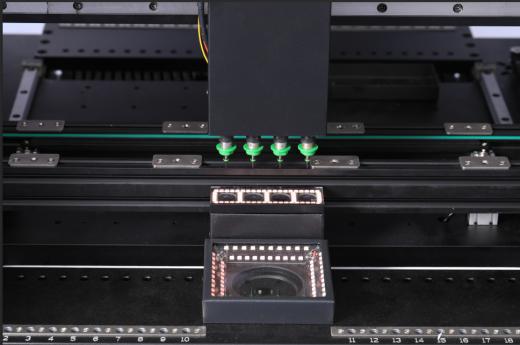

1.High Precision: Equipped with 6pcs of cameras: 1pc of Mark recognition camera, 1pc of 500 million pixels high precision recognition camera, and 4pcs of synchronous high-speed recognition cameras, could effectively mount 0402-5050 components, LED beads, diodes, transistors, SOP, 40mm*40mm range pin pitch ≥0.3mm chip QFP, BGA etc.
2.Fast Speed: the max. mounting speed: 7000CPH, average mounting speed: 5000CPH.

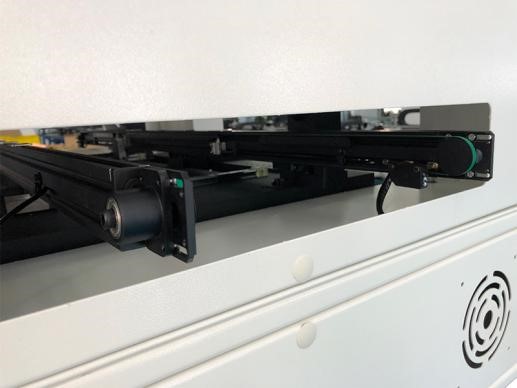

3.Full Automation: With rail guide, could be connected to other machines to achieve inline operation, thus greatly reduce labor costs, only need one person to complete the work.
4.Strong Stability: Panasonic Servo Motor and Drive, TBI high-precision grinding ball screw rod + heavy-duty linear guide, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.
|
|
