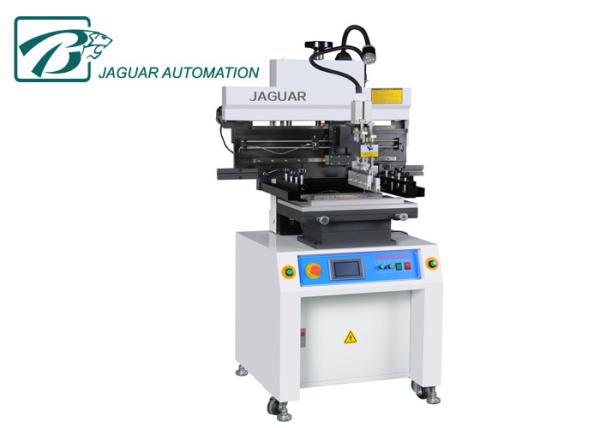

JAGUAR Semi-auto solder paste printer (S600)

Feature:

1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.

2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.

3.Block can be adjusted before and after the blade, to choose the right printing position.

4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.

5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.

6.Can be set to one-way and two-way, a variety of printing methods.

7.With the automatic counting function to facilitate the production of output statistics.

8.Adjustable blade angle, steel blade, rubber scraper are suitable.

9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.

10.Printing speed display, can be adjusted.

Specifications:

Specification:

Jaguar 6 head pick and place machine H06

【technical parameters】

○Number of feeders:64 pieces

○Number of mounting head:6 heads

○Number of pallets:6 pieces○Average power:500W○positioning accuracy:0.01mm○Nozzle buffer range:4.5 mm○Power Supply:220V, 50Hz○Compressed air: 0.5-0.6Mpa○Drive motor: Panasonic servo motor /HW-QiGn stepper motor○Identification mode: six head synchronous identification

○Suction nozzle vacuum source:High speed on-off vacuum generator with vacuum destruction

○Maximum board area:625×455mm○XY maximum range of motion:629×679mm○Z axis maximum range:20mm○Belt feeder: 8, 12, 16, 24mm and vibration feeder (can be attached to the chip)

○Maximum theory speed: 15000 Pcs/ hours○LED, resistance capacitance actual patch speed: 12000 Pcs/ hours

○Hybrid visual mount average patch speed 8500Pcs/ hours

○XYZ drive rail: TBI high precision heavy duty linear guide rail.

○Motion drive system: Panasonic AC servo -A6 driver○Operating system: Based on the Windows operating system, China Weiguo record company independent research and development automatic placement machine operating system, support Windows XP, win7 operating system

○Component angle: 0-360 degrees at any angle, the movement of synchronous rotation○X/Y mode of operation: QiGn-2017 version of intelligent curve acceleration and deceleration linkage system

○MARK point positioning: automatic scanning (can be arbitrarily set MARK points)

○Intelligent alarm: automatic correction, Automatic patch, lack of material alarm

○Into the plate mode: single segment from left to right transmission, can be connected to the automatic connection platform system, automatic PCB transmission positioning. Thimble positioning, manual release plate.

○Visual display: 17 inch industrial control display ratio 4:3 resolution 1280x1024

○Programming mode: peer to Peer programming, visual programming, PCB file import, etc.

○Optimization mode: three automatic optimization modes (including V2017 intelligent optimization)

○To identify the number of cameras: a Mark recognition camera, six high speed identification camera, a high resolution precision recognition camera

○Applicable scope:adapt 0402, 0603, 0805, 1206, two tubes, transistors, SOT, and 40*40mm in the range of pin spacing is greater than or equal to 0.3mm (0.5mm from the QFP BGA pin center), etc..

○Product weight:500KG○Size (length and width): 1450*1370*1350mm (without display and keyboard)

JAGUAR economy 6 Zones Reflow oven machine M6

Top and bottom totally 12 heating zones

Introduction:

No.1 The unique advanced long life heating system

1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector enhance temperature ramp up speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component uniformly heated and eliminate the "shadow effect" efficiently.

2.Using special high temperature resistant protection material in heating preservation structure and cast iron in heating passage.

3. Using imported Taiwan SanYue long shaft high temperature blower motor and W shaped heat duct, critical design for no noise or vibration and convenient for maintenance .

4. Heating zones are structured with porous aluminum air director, hot air is uniformly distributed to the PCB surface. Hood can open completely so as to easily proceed maintenance.

No.2 Stable and reliable conveyor system

1. The conveyor driving system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running extremely stable, speed range can varies between 0-1500mm/min.

2. Independent roller structure support and mesh belt running smooth and the speed precision is up to ±20 mm/min .

3. Mesh belt: durable and wear-resistant, not easy to deform and long life.

No.3 Stable and reliable electrical control system

1. It adopts imported thermostat control which owns fuzzy logic and PID closed loop control system. It can quick response to the changes in heating condition and ensure efficient heat compensation to achieve required temperature.

2. Using thermocouple imported from Taiwan to every heating zone, it can rapid feedback changes in each temperature zone, real-time monitoring to maintain the temperature in each zone.

3 .Special SSR solid state relay matched with dedicated heat dissipating block prolong the lifetime effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of environmental temperature and calorific value, applying the heating device by minimum pulse, ensuring the high precision of the temperature control & uniform temperature within zones. The zone length, flow direction, temperature distribution, all these are meet with IPC standards.

4. Powerful heating elements, heat up fast, it’s only need approx. 20 minutes from room temperature to set-point temperature.

5 .Failure diagnosis, visual & audio alarm.

6. Delay shutdown production function, uniform cooling after the shutdown: prevent hard-wares from any thermal damaged.

Specification:

Off-line SMT AOI Machine(Model No. A410)

Technical specifications

Production introduction

1. AOI principle: The modern optical principle and camera technology are used to capture the detected object in real time, and the captured image is analyzed and processed by a computer and special software to automatically generate the detection result.

2. AOI function : AOI effective detection rate: more than 99% (manual detection rate: about 70%); reduced labor: 2-4 people / production line, high detection efficiency; accurate and flawless statistical process defects through SPC function, can be effectively controlled; It is much higher than labor, long-term use, and the comprehensive cost can be significantly reduced; it can enhance the company's comprehensive strength and effectively improve the company's overall competitiveness.

3. AOI Advantage:

1) Checkable item:

DIP plug-in wave soldering:Tin, tin less, tin hole, short circuit, pin not out, etc.

SMT: Missing parts, misplaced, wrong parts, reverse polarity, damage, pollution, less tin, more tin, short circuit, solder joint, etc.

2) Powerful software features

&Color extraction, statistical analysis &Letter recognition

&Color distance analysis &IC bridge

&Black and white specific gravity analysis &Brightness analysis

&Graphic similarity analysis &CAD data import

&SPC statistics function &Operation level management

&barcode scanning &Offline programming

&CAD data function &Automatic detection of the bottom surface

&Multiple imposition detection &Multi-machine interconnection

&Self-built component standard library

&Export date, week, month report can be generated

&Can connect multiple repair stations

3) Precision mechanical structure design

&High-rigid landline, reasonable mechanical center of gravity, low vibration during movement, beautiful appearance

&Precision screw guide, track

&Precision automatic fixture, easy to load and unload PCB

&Exquisite assembly skills to ensure stable use of the machine, long life

4) Stable electrical control

&Servo drive system, stable and mature

&LS mature and stable motion control

&EPIX advanced image capture and processing technology

&OMRON's stable electrical components for long life

&LAAP high-flex towline cable with a service life of 5-8 million times

&Stable, easy to maintain, safe

5)Scientific light source design

&The overall processing technology ensures the accuracy of the light source illumination angle

&Strict brightness detection

&Strict aging test to ensure a service life of 50,000 hours.

&The scientific use of the principle of three-color light enables the components to exhibit different colors of the body and the solder at different angles for accurate detection purposes
