    12 Heating Zones SMT Reflow Oven Air Cooling With Nitroge System Center Support

    Ask Lasest Price
    Brand Name : Jagaur
    Model Number : R12
    Certification : CE ISO
    Price : 33500
    Payment Terms : T/T
    Supply Ability : 10 SETS per month
    Delivery Time : 10day
    • Product Details
    • Company Profile

    12 Heating Zones SMT Reflow Oven Air Cooling With Nitroge System Center Support

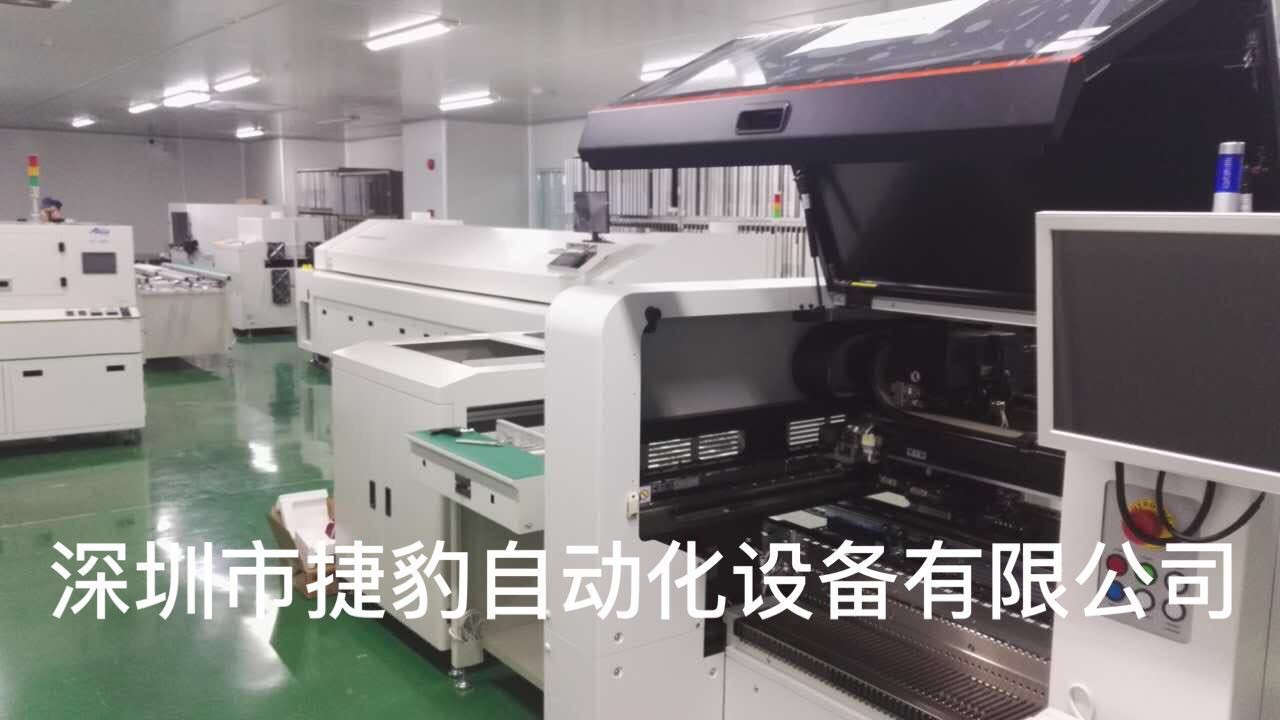

    High end hot air lead-free reflow oven JAGUAR R12







    Introduction:

    1. Windows XP platform, user friendly interface and easily swap between bilingual of English & Chinese.

    2. Digital control system adopted with PLC and Modular circuit. Achieving high stability and repeatibility.

    3. Intelligent diagnostic system (IDS) provides trouble remind, fault alert, list-out and SPC data record features.

    4. Zone temperature and blower speed can be controlled Independently, to meet the high-precision requirements.
    5. Effective heating zone length with uniform heat distribution.

    6. Forced air cooling system with efficient cooling speed suits most kinds of lead-free soldering application.
    7. PLC and PID closed loop control to achieve high precision temperature control.

    8. Standard 12 couples of top and bottom zones with patented air management structure, more efficient hot air convection and faster thermal compensation.
    9. The rail track is dealt with hardening process to make it more reliable.
    10. Manual adjusted process track width whereas providing option of automatic by SPG gear motor.
    11. Computerized controlled rail chain lubrication structure.
    12. Powerful software system can save all settings and data printout capability.
    13. Flux removal unit meet with environmental protection requirement.
    14. Nitrogen structure is an option.
    Specification:

    ModelJAGUAR R12





    Heating System

    Number of heating zonesTop 12/Bottom 12
    Number of cooling zones2
    Heating passage4600mm
    Heating styleHot air
    Cooling StyleAir Oven: Forced air; Nitrogen Oven: Water Chiller
    Exhaust Volume10m³/min * 2 vanes






    Conveyor System

    Max. Width of PCB450mm
    Mesh belt width500mm
    Conveyor DirectionL→R(or R→L)
    Process Height900±20mm
    Conveyor StyleMesh and chain
    Range of rail width0-450mm
    Conveyor speed0-2000mm/min
    Auto/manual LubricationStandard
    Fixed trackFront track fixed(option: rear track fixed)
    Product clearanceTop and bottom 25mm









    Control system

    Power supply5 line 3 phase 380V 50/60Hz
    Total consumption60kw
    Startup consumption58kw
    Steady consumption12KW
    Ramp up timeAbout 20 mins
    Temp. set point rangeRoom temperature-300℃
    Temp. control methodPID close loop control & SSR driving
    Temp. control precision±1℃
    Temp. deviation on PCB±2℃
    Data storageProcess Data and status storage(80GB)
    Nozzle plateAluminum Alloy Plate
    Abnormal AlarmAbnormal temp. (overtemp/low temp.)
    Board dropped alarmLight tower: Amber-warming, Green-normal, Red-abnormal


    General

    Dimension(L*W*H)6000×1400×1550mm
    Weight2800KG
    ColorComputer grey
