JAGUAR Pratical 8 Zone Lead-free Hot Air Reflow Oven F8
JAGUAR F8 as a memeber of F Series Lead-free Hot Air Reflow Oven, it owns all advantages of F series, with it's smart PC+PLC system control, international advanced hot air technology, energy saving and easy maintenance modular design, already become JAGUAR's best selling series, which is widely used in Telecom., Home Appliances, Multimedia, Power Supply & etc…., because it's medium size, can meet most customer, which already be top 1 sale.
Specification:
| Model | Jaguar F8 | |
Heating System | Number of heating zones | top 8/ bottom 8 |
| Number of cooling zones | 2(top2, bottom 2) | |
| Heating passage | 3121mm | |
| Heating style | Hot air | |
| Cooling style | Forced air cooling | |
| Exhaust Volume | 10m³/min * 2 vanes | |

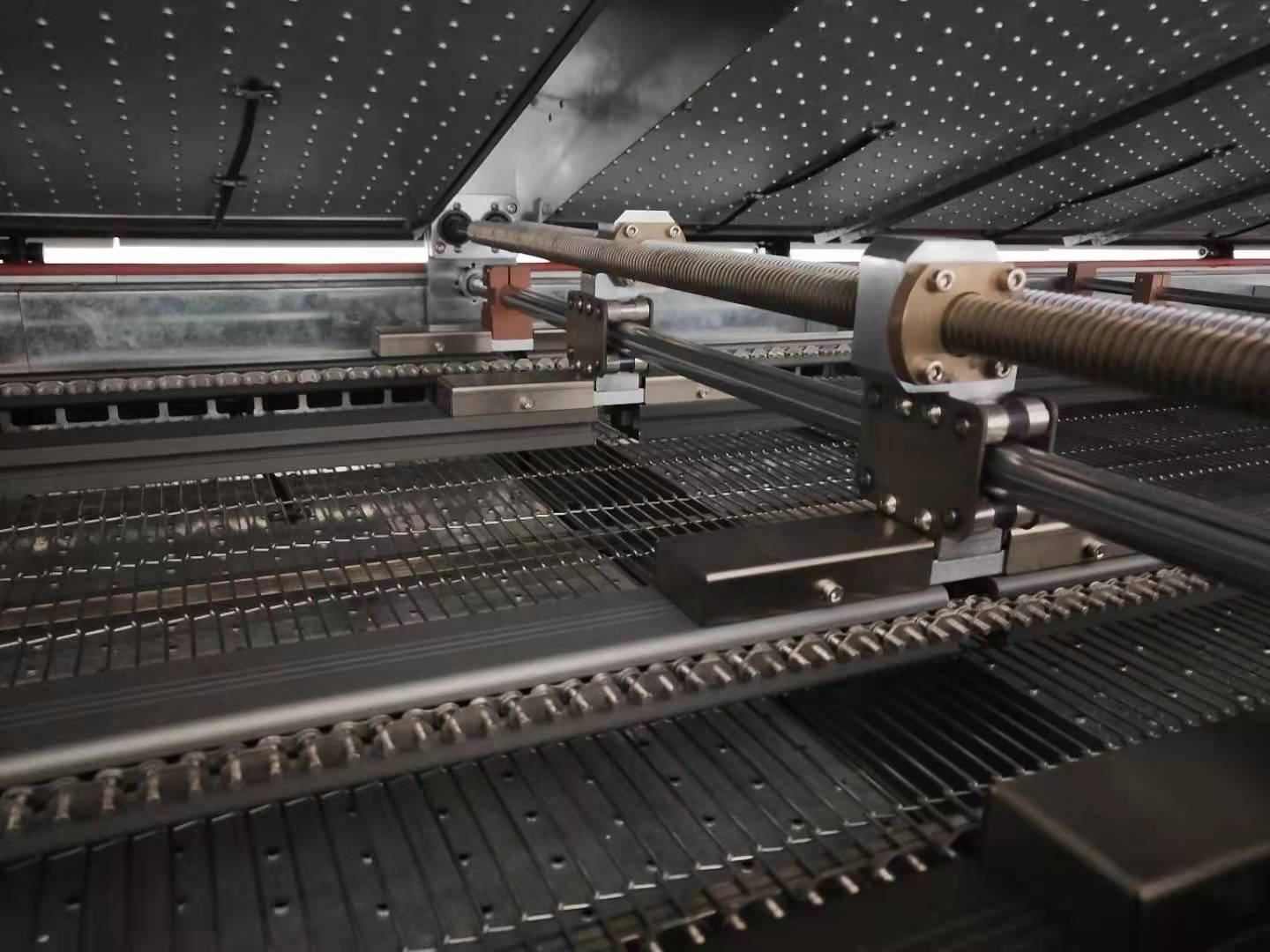

Conveyor System | Max. Width of PCB | 450mm(on mesh) |
| Mesh belt width | 500mm | |
| Conveyor Direction | L→R(option: R→L) | |
| Process Height | 900±20mm | |
| Conveyor type | Mesh and chain | |
| Range of rail width | 50-400mm | |
| Conveyor speed | 0-1800mm/min | |
| Auto/manual Lubrication | Standard | |
| Fixed track | Front track fixed(option: rear track fixed) | |
| Product clearance | Top and bottom 25mm | |
Control system | Power supply | 5 line 3 phase 380V 50/60HZ |
| Total power | 48KW | |
| Startup power | 40KW | |
| Steady consumption | 8KW | |
| Ramp up time | 20 mins | |
| Temp. setting range | From room temp. To 300℃ | |
| Temp. control method | PID close loop control & SSR driving | |
| Temp. control precision | ±1℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Data storage | Process Data and status storage(80GB) | |
| Nozzle plate | Aluminum Alloy Plate | |
| Abnormal Alarm | Abnormal temperature (overtemp/low temperature) | |
| Board dropped alarm | Tower light: Amber-warming, Green-normal, Red-abnormal | |
General | Dimension(L*W*H) | 5000*1320*1490mm |
| Weight | 2000kg | |
| Color | Computer gray | |
OPTIONS
1.Automatic PCB throughtput sensors easy to know PCB output
2. Sectional contructure guide rail
3. Herringbone mesh belt to meet overweight products application
|
|
