JAGUAR Vacuum Reflow Oven JB-V20

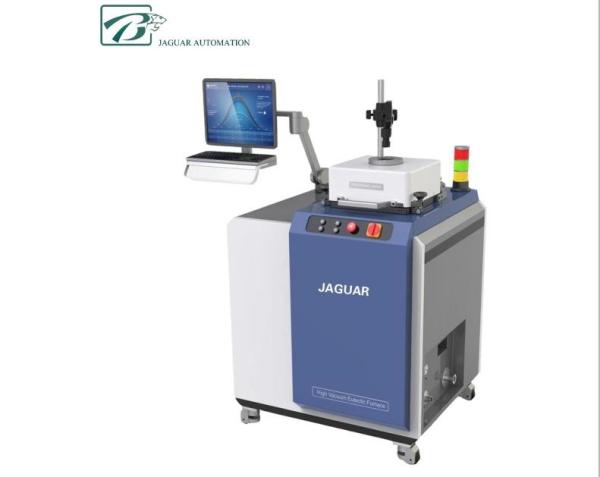

Jb-V20 is a new type of economical vacuum reflow soldering machine, with universal, high efficiency, full process, high vacuum, enhanced system protection, simple operation and convenient maintenance. Meantime it equipped with multi-angle high resolution video camera, which synchronously records and synchronously displays important technical parameters such as real-time temperature profile and vacuum degree, so as to strengthen the collation and statistics of new product process data and the monitoring and analysis of welding products. Powerful process database, can guide you to find the solution to the problem, different levels of operators can be skilled in equipment process and operation debugging.

Formic acid supply system

Features: `

Applications:IGBT Modular,MEMS package,High power device package,Photoelectric device packaging,Airtight package and so on.
1. Observation system: the cavity has a visual window to observe the welding process in real time.

2. Heating system: The heating rate adjustment control system is equipped, which can control the temperature with high precision and ensure the temperature uniformity of the bearing platform.　　

3. Vacuum system: the equipment is equipped with direct-connected high-speed rotary vane vacuum pump, which can quickly achieve 1pa furnace chamber

4. Cooling system: the equipment adopts water cooling system to ensure rapid cooling under high temperature and vacuum environment

5. Software system: temperature rise and drop programmable control, can be set according to the process of temperature rise and drop curve, each curve can be automatically generated, can be edited, modified, stored, etc.

6. Control system: the modular design of the software can independently set the process curve, vacuum extraction, atmosphere, cooling, etc., and can be combined with the production process to achieve a key operation　

7. Data recording system: with uninterrupted real-time monitoring and data recording system, software curve recording, temperature control curve saving, process parameters saving, equipment parameters recording, call;

8. Rapid cooling speed: independent water cooling and gas cooling devices are set up in the cavity to realize rapid cooling of the welded devices;

9. Low void rate welding quality: ensure that after welding, the large area of the pad to achieve a void rate of less than 3%;

10. The setting of the whole machine structure is convenient for the later maintenance and maintenance. One person can easily complete the heating structure maintenance and flux cleaning and recovery. It only takes 2 minutes to replace the heating tube.

11. Protection system: according to the manufacturing experience of multiple pieces, multiple installation protection system, customers can be assured to use;

Shenzhen Jaguar Automation Equipment Co., Ltd (referred to as "Jaguar") is a High-speed developing enterprise of High Precision Automatic lead-free Equipment such as reflow oven and wave soldering machine manufacturer, which specializes in lead free machine research and development.

As one of the well-known lead-free electronics equipment manufacturers in China, JAGUAR was founded in 2009 and headquartered in Shenzhen.

With full implementation of the PID process, reliability design concept and reliability testing throughout the entire product line, The company insists on market demand, established offices in various provinces and cities in the country.
