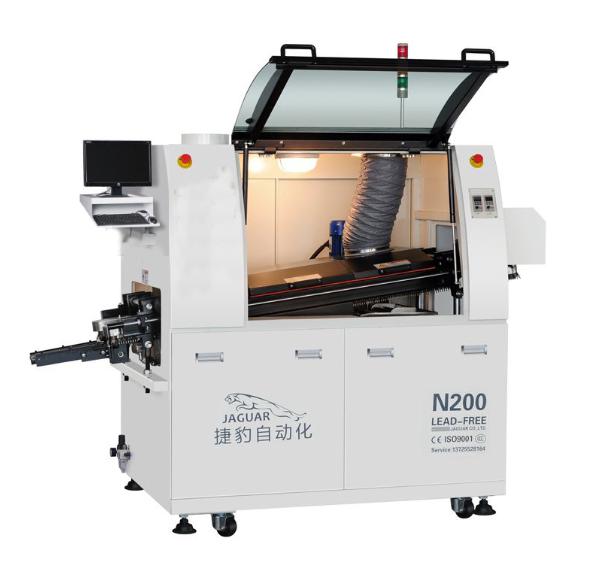

JAGUAR Lead-free Wave Solder N200
JAGUAR N200 Wave Solder is a compact size machine, total dimension is only 2100*1200*1600mm. but it is a smart and multi-funtion machine, has automatic flux spray system can intelligent recognize PCB, green smoke exhaust system euqiped in flux spray and soldering areas, 1 independent controlled hot air preheater, uniform heating, solder pot with dual wave design, each wave independent control, solder pot structure simple and eady maintain. so we say N200 is a super valued compact wave solder.
Specifications:
| Model No | JAGUAR N200 |
| Number of Pre-heater | 1 |
| Pre-heat Passage | 500mm |
| Body Size | 1400*1200*1600mm |
| Outside Dimension | 2100*1200*1600mm |
| Weight | 700KG |
| Component Lead | Within 10 mm |
| Total/steady Consumption | 9KW/3-5KW |
| Air Supply | 0.5MPa |
| Preheating Style | Hot Air |
| Preheater Consumption | 220V 5KW |
| Control Method | Button+PLC(Option: Touch screen or PC) |
| Range of Temp. Set Point | Room Temperature---300ºC |
| Preheating Time | About 10-15mins for Setting 150ºC |
| Solder Application | Lead-free / Sn-Pb |
| Solder Pot Capacity | 180KG |
| Solder Pot Temperature | 300ºC |
| Solder Pot Consumption | 380V 6KW |
| Solder Temp. Control method | PID&SSR |
| Wave Motor Consumption | 180Wx2pcs 220V |
| Solder Melting | About 120mins for Setting 250ºC |
| PCB Width | 50-200mm |
| Conveyor Speed | 300-1800mm/min |
| Conveyor Direction | L→R (R→L optional) |
| Solder Angel | 4-7 º |
| Flux Pressure | 3-5 Bar |
| Flux Capacity | 3.2L |
Green Smoke Exhaust System

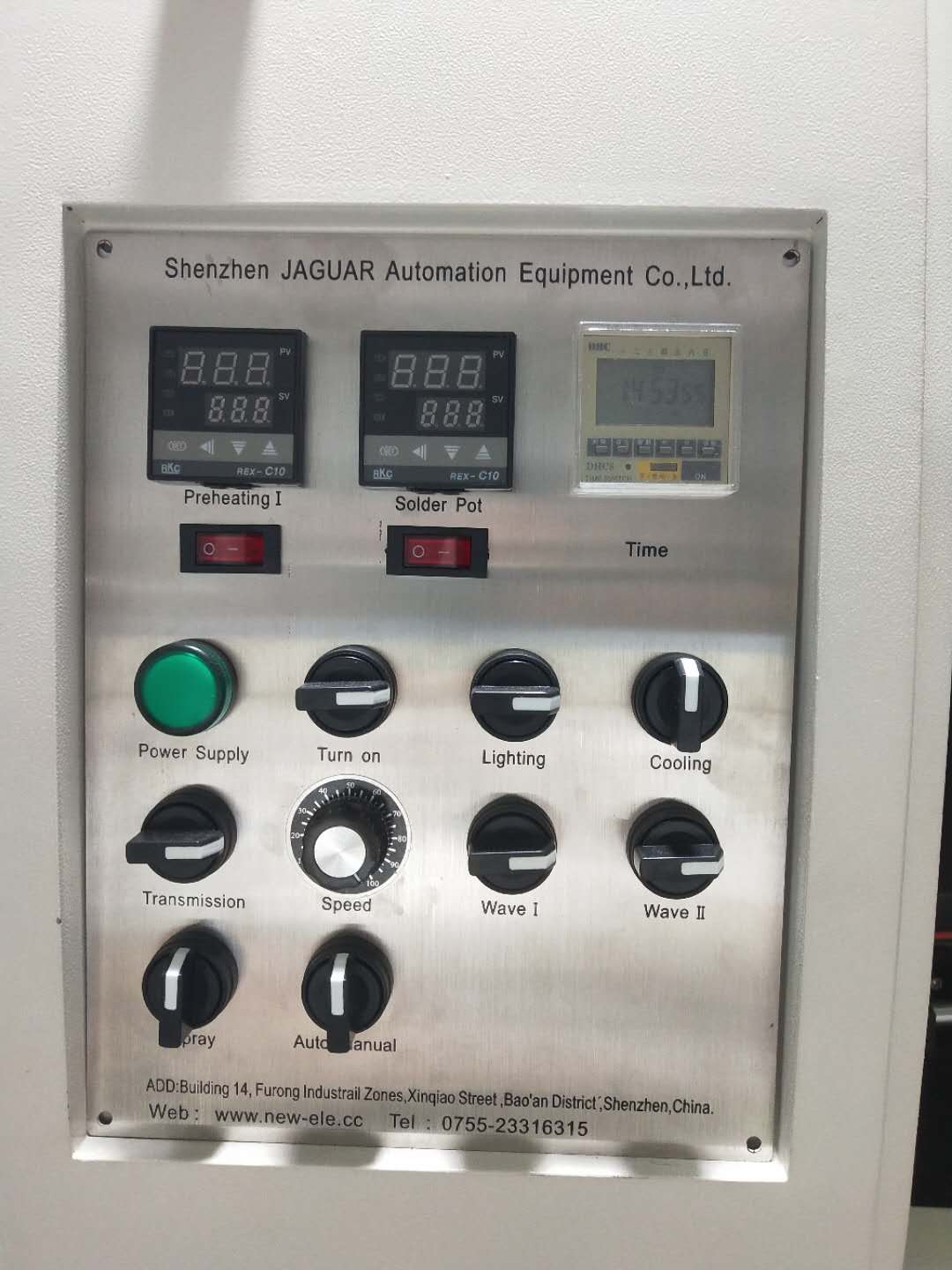

User Friendly Operating Panel

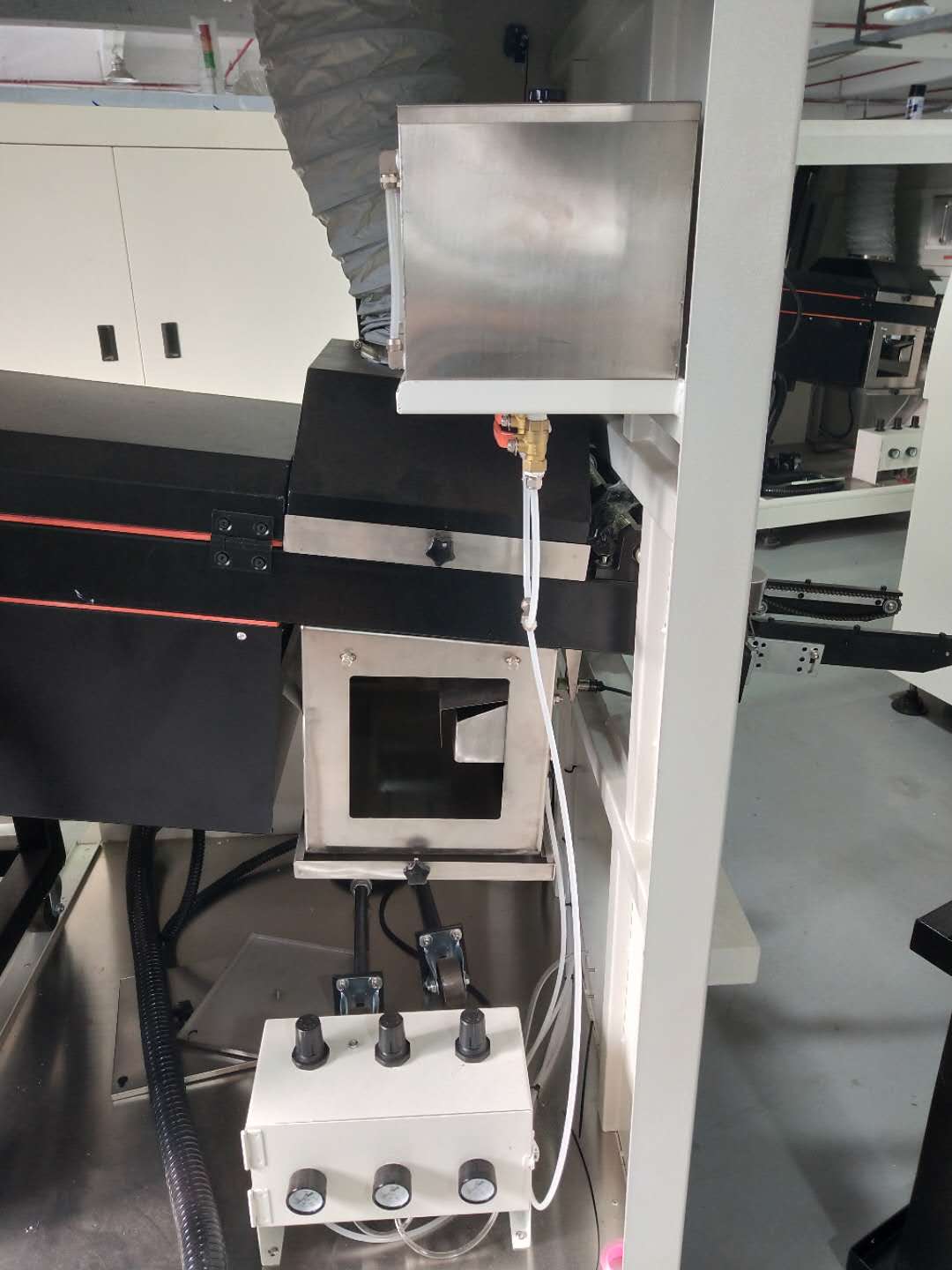

Automatic Flux Spray System

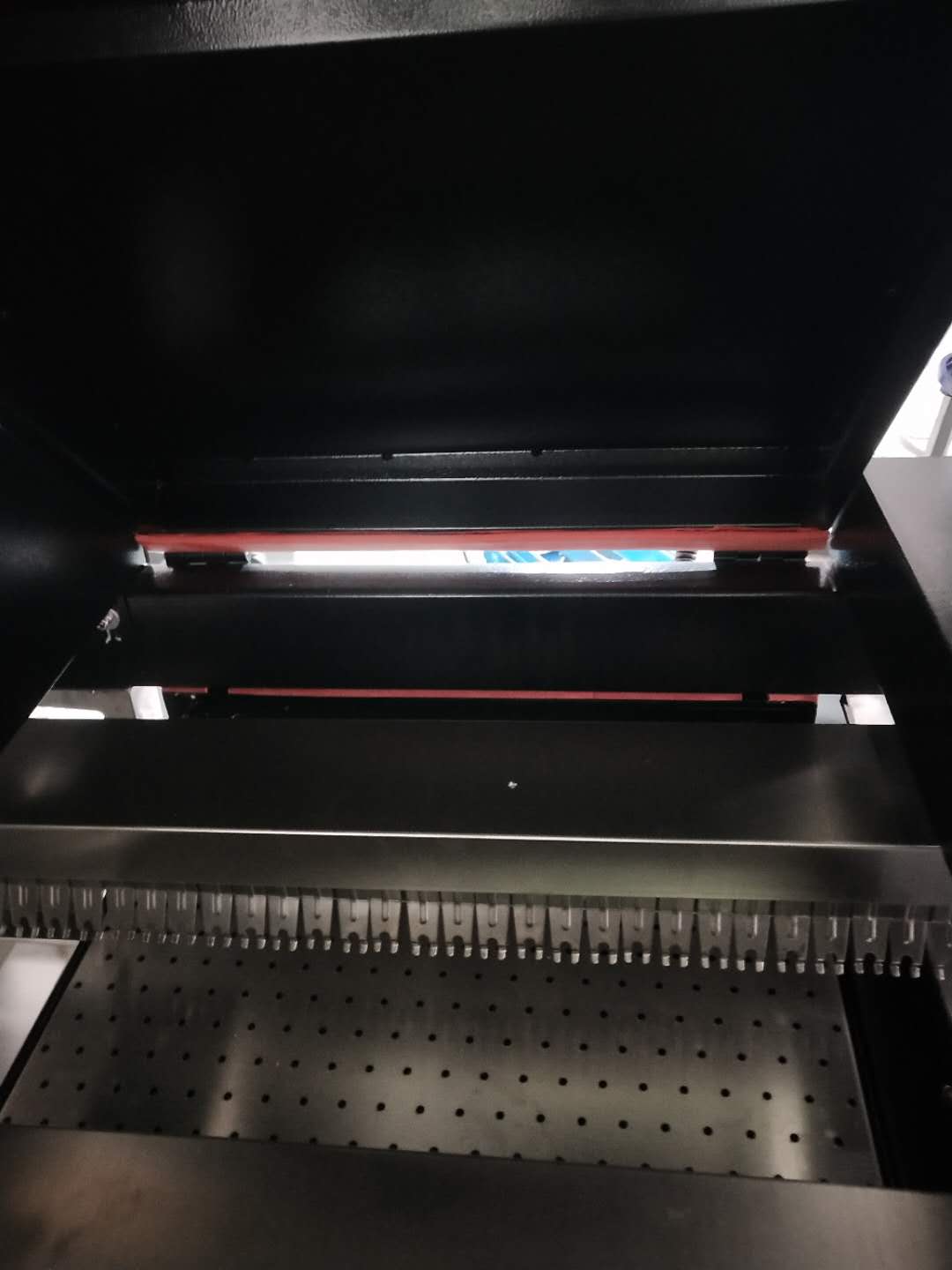

Independent Controlled 500mm Hot Air Preheater
Dual Wave Solder Pot Design
Introduction:
1. Automatic conveying power system and auto synchronous board
feeding functions.
2. Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.
3. Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.
4. PLC is used to control the machine, to ensure the reliability and stability of the system.
5. Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.
6. Special alloy solder fingers, strengthened double v-groove.
7. Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.
8. Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.
9.Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
10.Timer startup feature for solder pot, solder melted within 90 minutes.
11. Automatic finger cleaner ensure the cleanliness of solder fingers.
Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.
Touch Screen Style
PC Style
