Shenzhen Jaguar Automation Equipment Co., Ltd
6 Years
| Ask Lasest Price | |
| Brand Name : | Jaguar |
| Model Number : | N250 |
| Certification : | ISO/CE/CCC |
| Price : | 7000-10000USD/Set |
| Payment Terms : | T/T, L/C, D/A, D/P |
| Supply Ability : | 1 Set/20days |
| Delivery Time : | 3-5days |
Front Panel Controlled lead-free dual wave soldering machine
The Front Panel Solder Fingers
Specification:
| Model No. | JAGUAR N250 |
| Number of Pre-heaters | 2 |
| Pre-heater passage | 600mm |
| Body size | 1800(L)*1200(W)*1600(H) |
| Outside dimension | 2600(L)*1200(W)*1600(H) |
| Weight | 700KG |
| Total/steady consumption | 11KW/4-6KW |
| Air supply | 0.5MPa |
| Preheating style | Hot air |
| Preheater consumption | 220V 5KW |
| Control method | Press key +PLC (Option: touch screen, PC) |
| Range of temp. set-point | Room temperature---300℃ |
| Preheating time | About 10-15mins for setting 150℃ |
| Solder application | Lead-free / Sn-Pb |
| Solder pot capacity | 220KG |
| Solder pot temperature | 300℃ |
| Solder pot consumption | 380V 6KW |
| Solder temp. control method | PID&SSR |
| Wave motor power | 500W 220V |
| Solder melting | About 120mins for setting 250℃ |
| PCB width | 50-250mm |
| Conveyor speed | 0-1800mm/min |
| Conveyor direction | L→R (R→L optional) |
| Conveyor Inclination | 4—7 º |
| Flux pressure | 3-5 bar |
| Flux capacity | 3.2L |
INTRODUCTION:
1. Automatic conveying power system and auto synchronous board
feeding functions.
2. Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.
3. Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.
4. PLC is used to control the machine, to ensure the reliability and stability of the system.
5. Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.
6. Special alloy solder fingers, strengthened double v-groove.
7. Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.
8. Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.
9.Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
10.Timer startup feature for solder pot, solder melted within 90 minutes.
11. Automatic finger cleaner ensure the cleanliness of solder fingers.
Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.

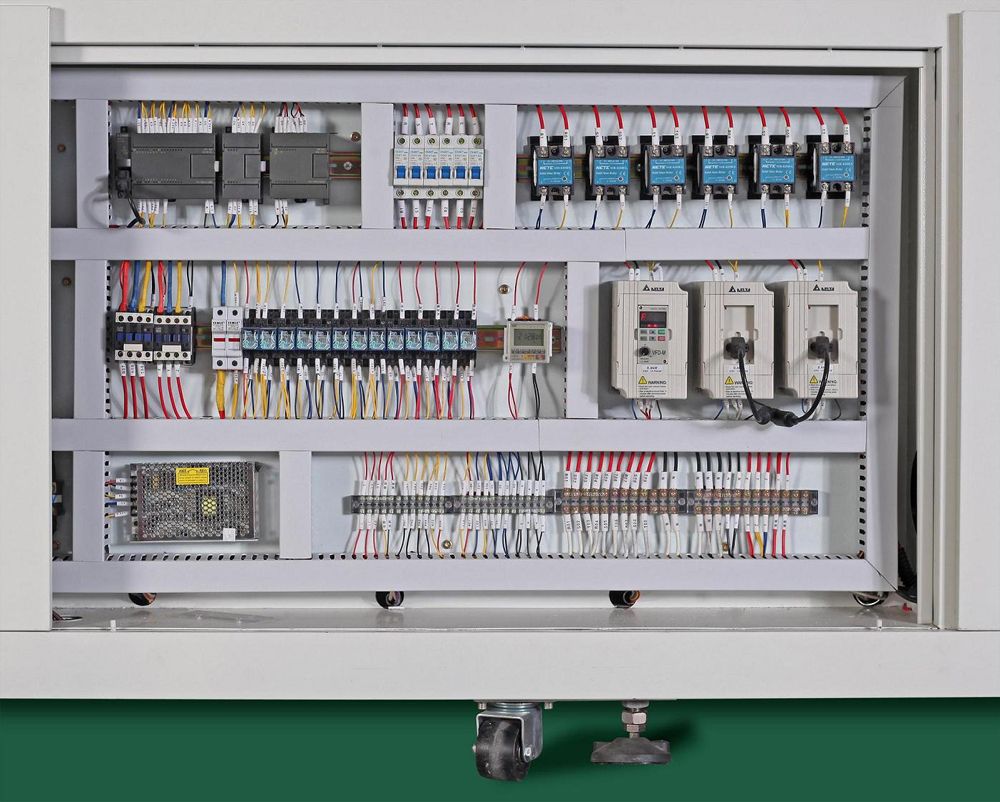

Configuration list : : | |
| Control system | SIEMENS control system + PC |
Conveyor motor | Taiwan Sanyue 90W gear box 1:100K |
Solder Fingers | Jaguar special double v-groove thickness 1.5mm |
Solder motor | Taiwan Sanyue three phase 6 pole 0.18kw high temperature resistant |
Pneumatic cylinder | Germany FEST |
Spray nozzle | Japanese lacquer ST-8 |
Solenoid valve, regulating valve, connector, etc. | Taiwan Yadeke |
Intermediate relay | Japan OMRON MY2 MY4 |
Frequency inverter | Taiwan Delta |
Heating element | Taiwan, imported nickel wire |
Axial cross-flow blower | Global goods |
Photoelectric switch | 24V NPN Swiss delight |
Proximity switch | Korea Autonics |
U type velocity measuring eye | OMRON |
| Solid-state relay | America KETE40A |
Air switch | chint |
| AC contactor | chint |
Thermocouple | Insulation type K Taiwan reach |
Button switch | Schneider |
|
|
