    Desktop 220V 600W 0.6Mpa 5000CPH SMT Soldering Machine

    Ask Lasest Price
    Brand Name : Jaguar
    Model Number : Chip Mounter A4
    Certification : ISO
    Price : USD8,500
    Payment Terms : T/T
    Supply Ability : 20pcs per month
    Delivery Time : 15-20days
    • Product Details
    • Company Profile

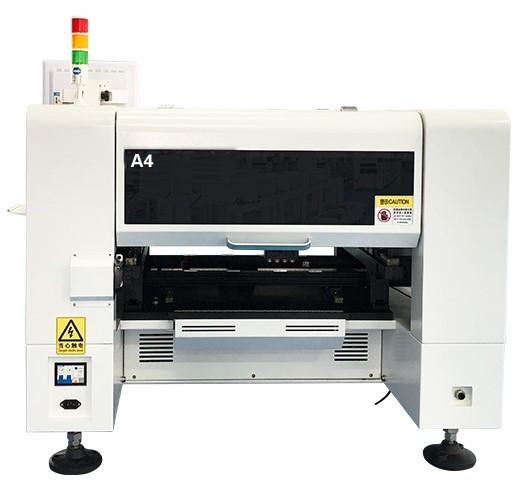

    Desktop 220V 600W 0.6Mpa 5000CPH SMT Soldering Machine

    JAGUAR-A4 Desktop Automatic SMT P&P Machine


    Product Advantages:


    1.High Precision: Equipped with 6pcs of cameras: 1pc of Mark recognition camera, 1pc of 500 million pixels high precision recognition camera, and 4pcs of synchronous high-speed recognition cameras, could effectively mount 0402-5050 components, LED beads, diodes, transistors, SOP, 40mm*40mm range pin pitch ≥0.3mm chip QFP, BGA etc.

    2.Fast Speed: the max. mounting speed: 7000CPH, average mounting speed: 5000CPH.

    3.Full Automation: With rail guide, could be connected to other machines to achieve inline operation, thus greatly reduce labor costs, only need one person to complete the work.

    4.Strong Stability: Panasonic Servo Motor and Drive, TBI high-precision grinding ball screw rod + heavy-duty linear guide, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.


    Product Parameters:


    Feeder No.46Product Weight240KGS
    Mounting Heads4 (No need to change Nozzle)XYZ Drive Guide RailTBI High-precision heavy-duty straight-line guide rail
    Average Power600W
    Positioning Accuracy0.01mmMotion Drive SystemPanasonic High speed DPS driver
    Nozzle Buffering Range5.0mmOperating SystemSupport Windows XP, Win7 operating system
    Power Supply220V, 50HzComponent Angle0~360°, synchronized rotation in motion
    Compressed Air0.5-0.6MpaX/Y Running ModeIntelligent curve acceleration and deceleration linear linkage
    Driving MotorPanasonic servo motor
    Mounting optimizationProgram automatically optimization, continue production after mounting completed, no need to wait for resettingPlacement ModeManual, semi-automatic, fully-automatic
    Convenient ButtonOffline, reset, automatic operation, clear alarm
    Nozzle Vacuum SourceHigh-speed on-off vacuum generator with vacuum damageAlarm when open the coverReducing speed or stop
    Max. PCB Area480x300mmAutomated connectionCan automatically connect signal equipment at both end
    XY Max. Movement Range556x680mmRail Guide Adjusting MethodManual + Automatic
    Z Axis Max. Movement Range20mmVisual Display15" industrial control display ratio 4:3, resolution 1024x768
    Belt Type Feeder8/12/16/24/32mm feeders, stick feederProgramming ModePoint-to-point programming, visual programming, PCB file coordinates inputting, etc.
    Max. Mounting Speed7000CPH
    Average Mounting Speed5000CPH (Visual)Recognition Camera No.1x Mark camera, 4x high-speed camera, 1x 500 million pixels high-precision camera
    Dimensions1180x1080x880mm
    Applicable Mounting Range: Suitable for 0402, 0603, 0805, 1206, LED beads, diodes, transistors, SOT, 40mm*40mm range pin pitch ≥0.3mm QFP, BGA etc.

    reflow oven,smd soldering,soldering machine,reflow soldering, reflow soldering oven,smt reflow oven,reflow machine,smd reflow oven,pcb oven,soldering oven,smd soldering machine,pcb reflow oven,cheap reflow oven,t962 reflow oven,convection reflow oven, reflow oven price,small reflow oven,reflow soldering machine,reflow oven kit,smd oven,smt oven,smd soldering oven,smt reflow,low cost reflow oven,smd reflow,surface mount soldering,lead free reflow oven, hot air reflow, infrared reflow, convection reflow, reflow station, reflow soldering oven price,infrared oven,smt reflow oven manufacturers, hot air reflow

    z.1 company strength.jpgz.2 Hot sale.jpgz.3 SMT PCB line.jpgz.4 Certificate.jpgz.5 Packing,shipping.jpgz.6 Exhibitions.jpg

    FAQ:

    1) This is the first time I use this kind of machine, is it easy to operate?
    There is english manual or guide video that show you how to use machine.
    If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

    2) If machine have any problem after I receive it, how can I do ?

    Free parts send to you in machine warranty period.
    If the part is less than 0.5KG, we pay the postage.
    If it exceeds 0.5KG, you need to pay the postage.

    3) MOQ ?
    1 set machine, mixed order is also welcomed.

    4) How can I buy this machine from you? ( Very easy and flexible !)
    A. Consult us about this product on line or by e-mail.
    B. Negotiate and confirm the final price , shipping , payment methods and other terms.
    C. Send you the proforma invoice and confirm your order.
    D. Make the payment according to the method put on proforma invoice.
    E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
    And 100% quality check before shipping.
    F.Send your order by air or by sea.

    5)Why choose us ?
    A. Gold supplier on Alibaba !
    B. Trade assurance to US$54,000 !
    C. Best price & Best shipping & Best service !
