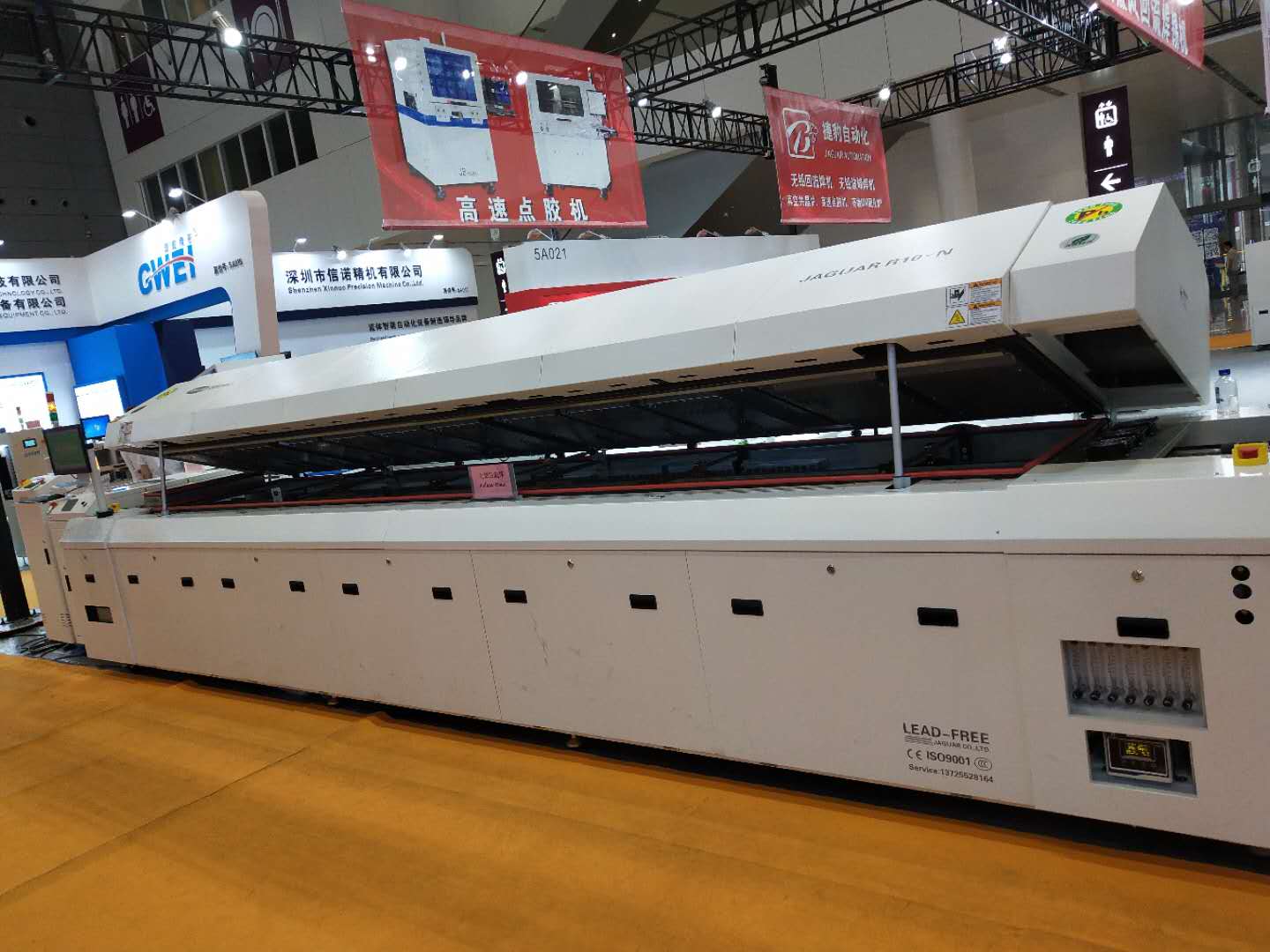

JAGUAR High-end Lead-free Nitrogen Reflow Oven for Auto Electronics
JAGUAR R High-end series was designed for high standard applications, such as Semi-conductor, automobile, military related & etc…, which provides optimized lead-free processing, with high precision of heating and cooling, low power & nitrogen consumption, R series is favored by senior application customers.
Specifications:
| Model No | JAGUAR R8 | JAGUAR R10 | JAGUAR R12 |
| Dimension(L*W*H) | 5300x1350x1550mm | 6200x1350x1550mm | 7200x1350x1550mm |
| Weight | Approx.:1950kgs | Approx.:2250kgs | Approx.:2550kgs |
| Number of heating zones | Up 8 Bottom 8 | Up 10 Bottom 10 | Up 12 Bottom 12 |
| Length of heating zones | 3121mm | 3890mm | 4640mm |
| Number of cooling zones | Up3 Bottom3(Forced Cooling Air) | ||
| Exhaust volume | 10m³/min x 2 exhausts | ||
| Rails structure | Subsection Integrated Type | ||
| Max width of PCB | 500mm | ||
| Range of rail width | 50-420mm | ||
| Components clearance | Top 30mm bottom 25mm | ||
| Conveyor direction | L-R(R-L optional) | ||
| Fiexed rail side | Front rail fixed (Option:rear rail fixed) | ||
| PCB transmission mode | Air-reflow=Chain+mesh, N2-reflow=Chain+mesh (Option:mesh) | ||
| Conveyor height | 900±20mm | ||
| Conveyor speed range | 300~2000mm/min | ||
| Auton/Manual lubrication | Standard | ||
| Electric supply | 3 phase, 380V 50/60Hz(Option:3 phase, 220V 50/60Hz) | ||
| Starting power | Approx.:30kw | Approx.:36kw | Approx.:42kw |
| Normal power consumption | Approx.:6-9KW | Approx.:8-12KW | Approx.:10-14KW |
| Warming time | Approx.:20minute | Approx.:25minute | Approx.:30minute |
| Temp. Setting range | Room Temp.-300°c | ||
| Temp. Control method | PID close loop control + SSR driving | ||
| Temp. Control precision | ±1°c | ||
| Nozzle plate | 8mm thick aluminum Alloy Plate | ||
| Data storage | Process data and status storage(80GB) | ||
| Abnormal alarm | Abnormal temperature(Extra-high/Extra-low temp.) | ||
| Board dropped alarm | Tower light:Yellow-warming, Green-Normal, Red-Abnormal | ||
| Cooling method | Air oven:Forced air; Nitrogen Oven:Water chiller | ||
Introduction:
1. Windows XP platform, user friendly interface and easily swap between bilingual of English & Chinese.
2. Digital control system adopted with PLC and Modular circuit. Achieving high stability and repeatibility.
3. Intelligent diagnostic system (IDS) provides trouble remind, fault alert, list-out and SPC data record features.
4. Zone temperature and blower speed can be controlled Independently, to meet the high-precision requirements.
5. Effective heating zone length with uniform heat distribution.
6. Forced air cooling system with efficient cooling speed suits most kinds of lead-free soldering application.
7. PLC and PID closed loop control to achieve high precision temperature control.
8. Standard 8 couples of top and bottom zones with patented air management structure, more efficient hot air convection and faster thermal compensation.
9. The rail track is dealt with hardening process to make it more reliable.
10. Manual adjusted process track width whereas providing option of automatic by SPG gear motor.
11. Computerized controlled rail chain lubrication structure.
12. Powerful software system can save all settings and data printout capability.
13. Flux removal unit meet with environmental protection requirement.
14. Nitrogen structure is an option.
